BAP55LX,315

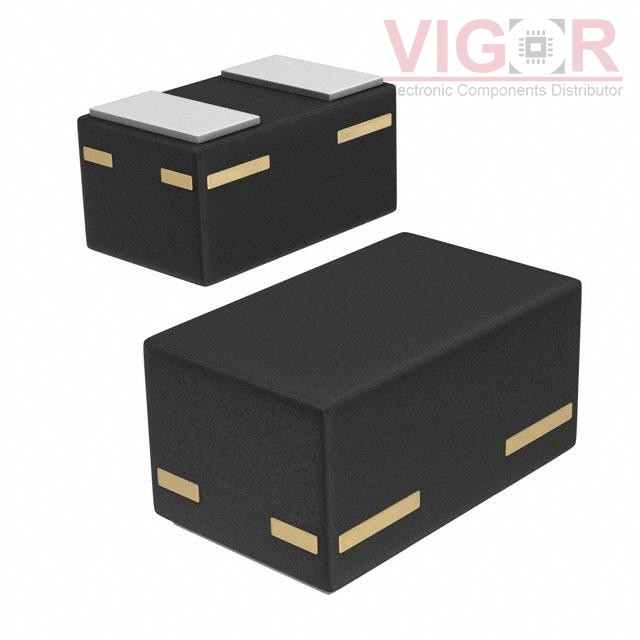

Image is for reference,
please contact us to get the real picture

Part No :: BAP55LX,315

Manufacturer: NXP Semiconductors

Description: RF DIODE PIN 50V 135MW 2DFN

Catalog: Diodes - RF

Shipped from: HK warehouse

Expected Shipping Date: Jul 15 - Jul 19 2025

DataSheet: BAP55LX,315 PDF

Availability: 12142 pieces

Unit Price: ~~$0.41000~~

Current price of BAP55LX,315 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BAP55LX,315 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Diode Type:	PIN - Single
Voltage - Peak Reverse (Max):	50V
Current - Max:	100 mA
Capacitance @ Vr, F:	0.28pF @ 20V, 1MHz
Resistance @ If, F:	800mOhm @ 100mA, 100MHz
Power Dissipation (Max):	135 mW
Operating Temperature:	-65°C ~ 150°C (TJ)
Package / Case:	2-XDFN
Supplier Device Package:	2-DFN1006D (0.6x1.0)

Please confirm the specifications of the products when ordering.
