1N5224C-TR

1N5224C-TR

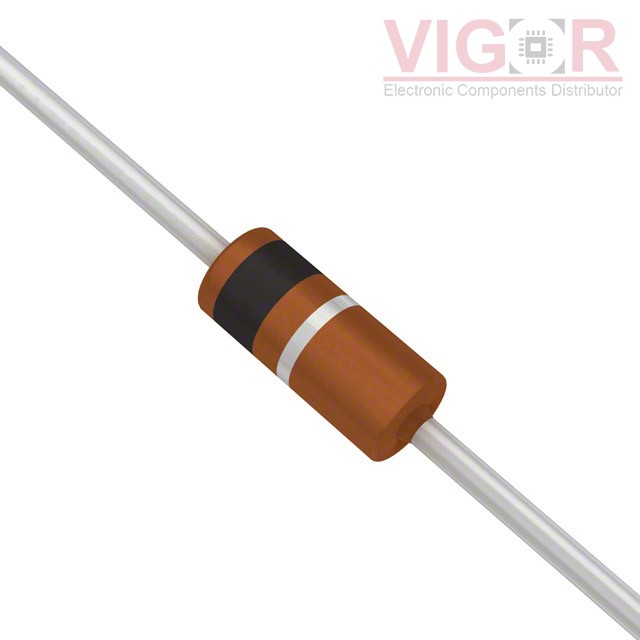

Image is for reference,
please contact us to get the real picture

Part No :

1N5224C-TR

Manufacturer
Vishay General Semiconductor – Diodes Division
Description
DIODE ZENER 2.8V 500MW DO35
Catalog
Diodes - Zener - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 02 - Aug 06 2025
DataSheet
1N5224C-TR PDF
Availability
0 pieces
Unit Price
$0.03520

Current price of 1N5224C-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1N5224C-TR Specifications
Type Description
Series:Automotive, AEC-Q101
Package:Tape & Reel (TR)
Part Status:Active
Voltage - Zener (Nom) (Vz):2.8 V
Tolerance:±2%
Power - Max:500 mW
Impedance (Max) (Zzt):30 Ohms
Current - Reverse Leakage @ Vr:75 µA @ 1 V
Voltage - Forward (Vf) (Max) @ If:1.1 V @ 200 mA
Operating Temperature:175°C
Mounting Type:Through Hole
Package / Case:DO-204AH, DO-35, Axial
Supplier Device Package:DO-35
