JAN1N5524D-1

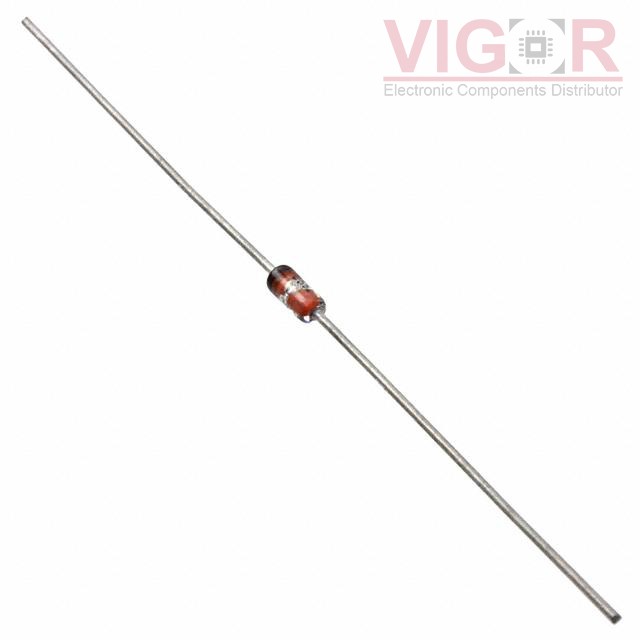

Image is for reference,
please contact us to get the real picture

Part No :: JAN1N5524D-1

Manufacturer: Roving Networks / Microchip Technology

Description: DIODE ZENER 5.6V 500MW DO35

Catalog: Diodes - Zener - Single

Shipped from: HK warehouse

Expected Shipping Date: Aug 22 - Aug 26 2025

DataSheet: JAN1N5524D-1 PDF

Availability: 0 pieces

Unit Price: ~~$14.73000~~

Current price of JAN1N5524D-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JAN1N5524D-1 Specifications

Type	Description
Series:	Military, MIL-PRF-19500/437
Package:	Bulk
Part Status:	Active
Voltage - Zener (Nom) (Vz):	5.6 V
Tolerance:	±1%
Power - Max:	500 mW
Impedance (Max) (Zzt):	30 Ohms
Current - Reverse Leakage @ Vr:	2 µA @ 3.5 V
Voltage - Forward (Vf) (Max) @ If:	1.1 V @ 200 mA
Operating Temperature:	-65°C ~ 175°C
Mounting Type:	Through Hole
Package / Case:	DO-204AH, DO-35, Axial
Supplier Device Package:	DO-35 (DO-204AH)
