TD120N16SOFHPSA1

TD120N16SOFHPSA1

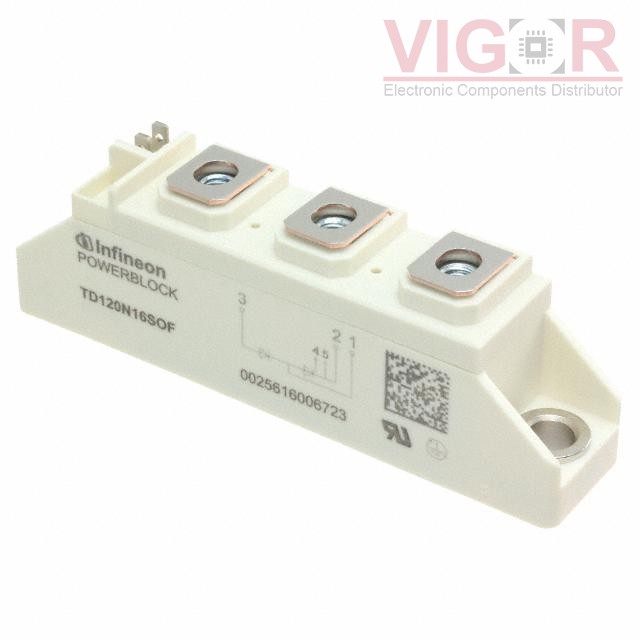

Image is for reference,
please contact us to get the real picture

Part No :

TD120N16SOFHPSA1

Manufacturer
IR (Infineon Technologies)
Description
THYRISTOR MODULE 1600V 120A
Catalog
Thyristors - SCRs - Modules
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
TD120N16SOFHPSA1 PDF
Availability
12 pieces
Unit Price
$24.59000

Current price of TD120N16SOFHPSA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TD120N16SOFHPSA1 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Structure:Series Connection - All SCRs
Number of SCRs, Diodes:2 SCRs
Voltage - Off State:1.6 kV
Current - On State (It (AV)) (Max):119 A
Current - On State (It (RMS)) (Max):190 A
Voltage - Gate Trigger (Vgt) (Max):2.5 V
Current - Gate Trigger (Igt) (Max):100 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):-
Current - Hold (Ih) (Max):250 mA
Operating Temperature:130°C (TJ)
Mounting Type:Surface Mount
Package / Case:Module
