TZ810N22KOFHPSA2

TZ810N22KOFHPSA2

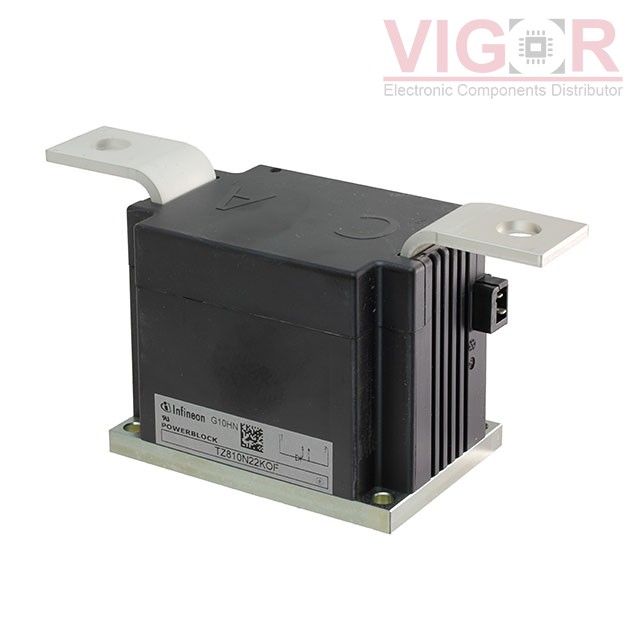

Image is for reference,
please contact us to get the real picture

Part No :

TZ810N22KOFHPSA2

Manufacturer
IR (Infineon Technologies)
Description
SCR MODULE 2.2KV 1500A MODULE
Catalog
Thyristors - SCRs - Modules
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
TZ810N22KOFHPSA2 PDF
Availability
2 pieces
Unit Price
$489.26000

Current price of TZ810N22KOFHPSA2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TZ810N22KOFHPSA2 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Structure:Single
Number of SCRs, Diodes:1 SCR
Voltage - Off State:2.2 kV
Current - On State (It (AV)) (Max):819 A
Current - On State (It (RMS)) (Max):1500 A
Voltage - Gate Trigger (Vgt) (Max):2 V
Current - Gate Trigger (Igt) (Max):250 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):-
Current - Hold (Ih) (Max):500 mA
Operating Temperature:125°C (TJ)
Mounting Type:Surface Mount
Package / Case:Module
