ETT480N22P60HPSA1

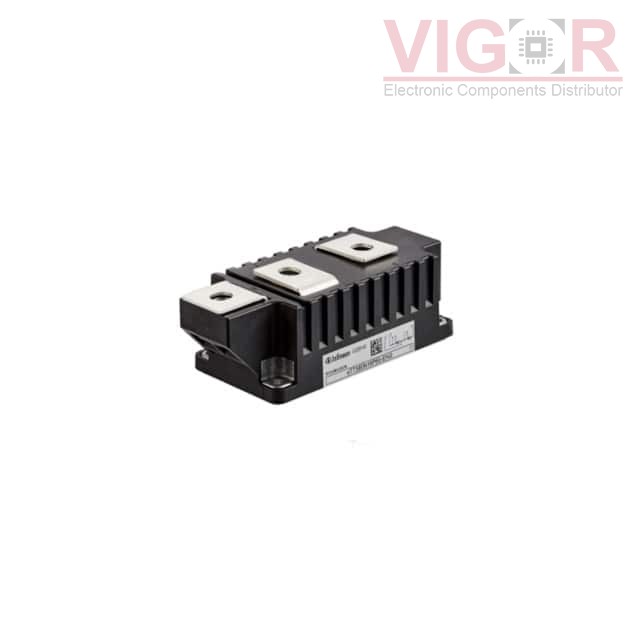

Image is for reference,
please contact us to get the real picture

Part No :: ETT480N22P60HPSA1

Manufacturer: IR (Infineon Technologies)

Description: THYR / DIODE MODULE DK

Catalog: Thyristors - SCRs - Modules

Shipped from: HK warehouse

Expected Shipping Date: Jul 02 - Jul 06 2025

DataSheet: ETT480N22P60HPSA1 PDF

Availability: 6 pieces

Unit Price: ~~$240.42000~~

Current price of ETT480N22P60HPSA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ETT480N22P60HPSA1 Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Not For New Designs
Structure:	Series Connection - All SCRs
Number of SCRs, Diodes:	2 SCRs
Voltage - Off State:	2.2 kV
Current - On State (It (AV)) (Max):	480 A
Current - On State (It (RMS)) (Max):	700 A
Voltage - Gate Trigger (Vgt) (Max):	2.2 V
Current - Gate Trigger (Igt) (Max):	250 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):	14700A @ 50Hz
Current - Hold (Ih) (Max):	300 mA
Operating Temperature:	-40°C ~ 135°C (TC)
Mounting Type:	Chassis Mount
Package / Case:	Module

Please confirm the specifications of the products when ordering.
