VS-VSKH136/04PBF

VS-VSKH136/04PBF

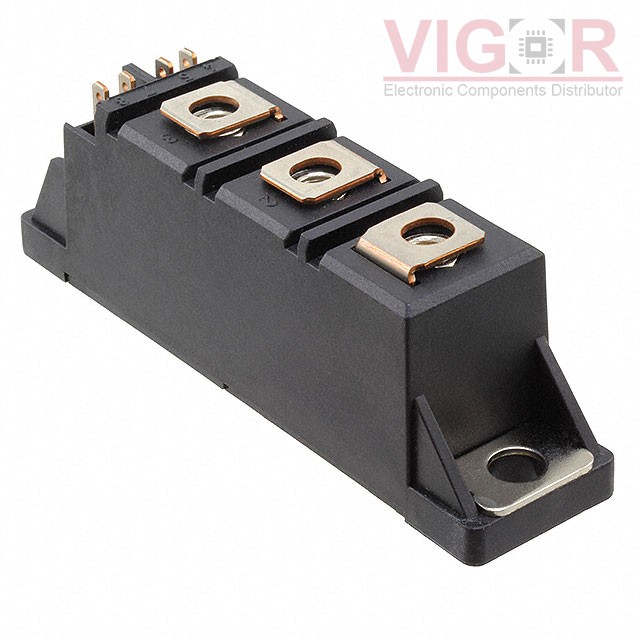

Image is for reference,
please contact us to get the real picture

Part No :

VS-VSKH136/04PBF

Manufacturer
Vishay General Semiconductor – Diodes Division
Description
MODULE DIODE 135A INT-A-PAK
Catalog
Thyristors - SCRs - Modules
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
VS-VSKH136/04PBF PDF
Availability
0 pieces
Unit Price
$66.10267

Current price of VS-VSKH136/04PBF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

VS-VSKH136/04PBF Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Structure:Series Connection - SCR/Diode
Number of SCRs, Diodes:1 SCR, 1 Diode
Voltage - Off State:400 V
Current - On State (It (AV)) (Max):135 A
Current - On State (It (RMS)) (Max):300 A
Voltage - Gate Trigger (Vgt) (Max):2.5 V
Current - Gate Trigger (Igt) (Max):150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):3200A, 3360A
Current - Hold (Ih) (Max):200 mA
Operating Temperature:-40°C ~ 125°C (TJ)
Mounting Type:Chassis Mount
Package / Case:INT-A-PAK (3 + 4)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
