VSKH500-16

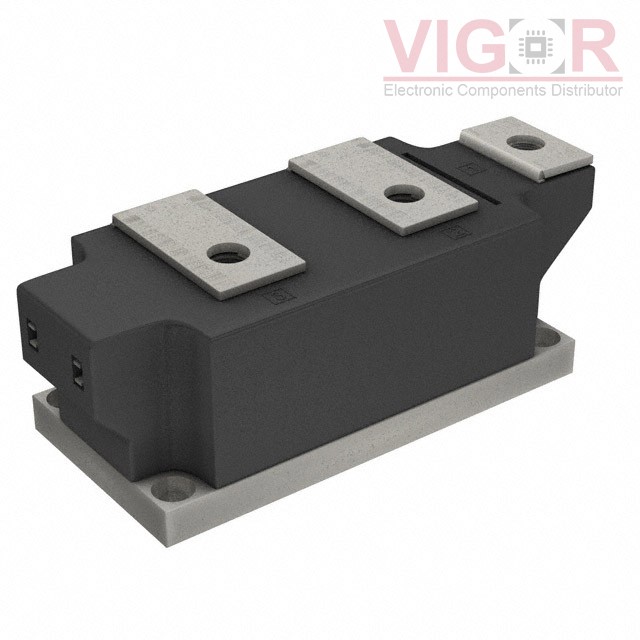

Image is for reference,
please contact us to get the real picture

Part No :: VSKH500-16

Manufacturer: Vishay General Semiconductor – Diodes Division

Description: SCR 1600V 500A SUPER MAGN-A-PAK

Catalog: Thyristors - SCRs - Modules

Shipped from: HK warehouse

Expected Shipping Date: Jul 09 - Jul 13 2025

DataSheet: VSKH500-16 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of VSKH500-16 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

VSKH500-16 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Structure:	Series Connection - SCR/Diode
Number of SCRs, Diodes:	1 SCR, 1 Diode
Voltage - Off State:	1.6 kV
Current - On State (It (AV)) (Max):	500 A
Current - On State (It (RMS)) (Max):	785 A
Voltage - Gate Trigger (Vgt) (Max):	3 V
Current - Gate Trigger (Igt) (Max):	200 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):	17800A, 18700A
Current - Hold (Ih) (Max):	500 mA
Operating Temperature:	-
Mounting Type:	Chassis Mount
Package / Case:	SUPER MAGN-A-PAK

Please confirm the specifications of the products when ordering.
