IRKL56/04A

IRKL56/04A

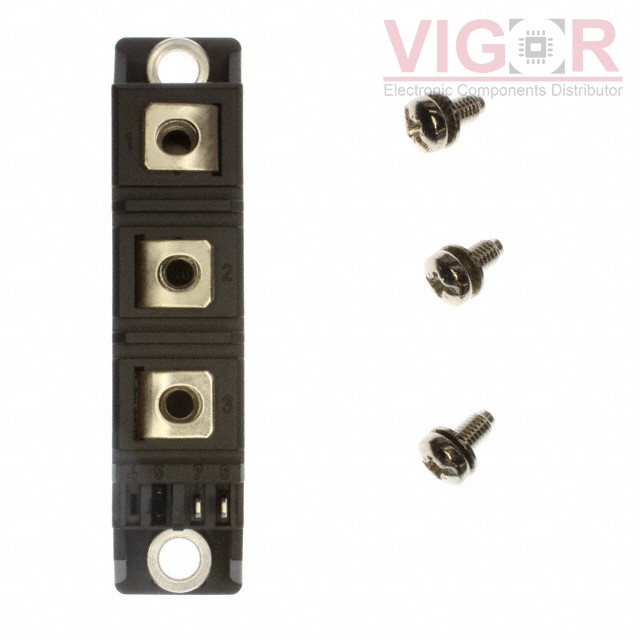

Image is for reference,
please contact us to get the real picture

Part No :

IRKL56/04A

Manufacturer
Vishay General Semiconductor – Diodes Division
Description
SCR DBL HISCR 400V 60A ADDAPAK
Catalog
Thyristors - SCRs - Modules
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
IRKL56/04A PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of IRKL56/04A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IRKL56/04A Specifications
Type Description
Series:-
Package:Bulk
Part Status:Obsolete
Structure:Series Connection - SCR/Diode
Number of SCRs, Diodes:1 SCR, 1 Diode
Voltage - Off State:400 V
Current - On State (It (AV)) (Max):60 A
Current - On State (It (RMS)) (Max):135 A
Voltage - Gate Trigger (Vgt) (Max):2.5 V
Current - Gate Trigger (Igt) (Max):150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm):1310A, 1370A
Current - Hold (Ih) (Max):200 mA
Operating Temperature:-40°C ~ 125°C (TJ)
Mounting Type:Chassis Mount
Package / Case:ADD-A-PAK (3 + 2)
