UMC4N-7

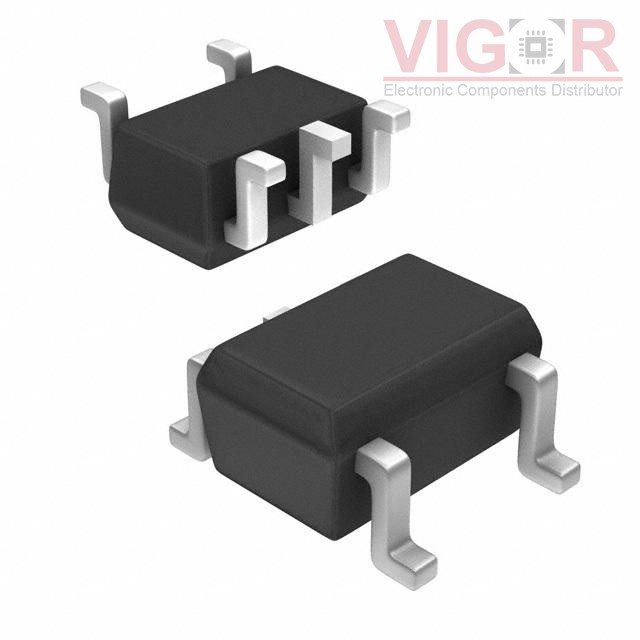

Image is for reference,
please contact us to get the real picture

Part No :

UMC4N-7

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
TRANS NPN/PNP PREBIAS SOT353
Catalog
Transistors - Bipolar (BJT) - Arrays, Pre-Biased
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
UMC4N-7 PDF
Availability
367463000 pieces
Unit Price
$0.42000

Current price of UMC4N-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Transistor Type:1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max):100mA
Voltage - Collector Emitter Breakdown (Max):50V
Resistor - Base (R1):47kOhms, 10kOhms
Resistor - Emitter Base (R2):47kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce:68 @ 5mA, 5V
Vce Saturation (Max) @ Ib, Ic:300mV @ 500µA, 10mA / 300mV @ 250µA, 5mA
Current - Collector Cutoff (Max):500nA
Frequency - Transition:250MHz
Power - Max:150mW
Mounting Type:Surface Mount
Package / Case:5-TSSOP, SC-70-5, SOT-353
Supplier Device Package:SOT-353
