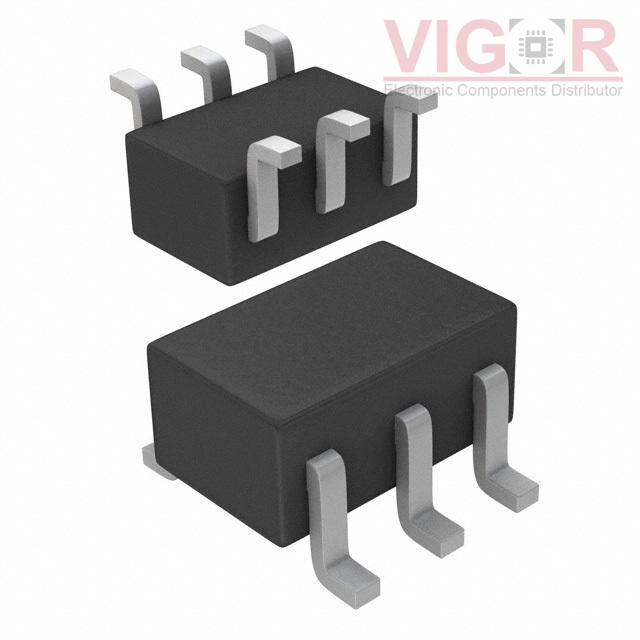

RN49A1(TE85L,F)

RN49A1(TE85L,F)

Image is for reference,
please contact us to get the real picture

Part No :

RN49A1(TE85L,F)

Manufacturer
Toshiba Electronic Devices and Storage Corporation
Description
PNP + NPN BRT, Q1BSR=2.2KΩ, Q1BE
Catalog
Transistors - Bipolar (BJT) - Arrays, Pre-Biased
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
RN49A1(TE85L,F) PDF
Availability
3000 pieces
Unit Price
$0.35000

Current price of RN49A1(TE85L,F) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RN49A1(TE85L,F) Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Transistor Type:1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max):100mA
Voltage - Collector Emitter Breakdown (Max):50V
Resistor - Base (R1):2.2kOhms, 22kOhms
Resistor - Emitter Base (R2):47kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce:80 @ 10mA, 5V
Vce Saturation (Max) @ Ib, Ic:300mV @ 250µA, 5mA
Current - Collector Cutoff (Max):500nA
Frequency - Transition:200MHz, 250MHz
Power - Max:200mW
Mounting Type:Surface Mount
Package / Case:6-TSSOP, SC-88, SOT-363
Supplier Device Package:US6
