DIMD10A-7

DIMD10A-7

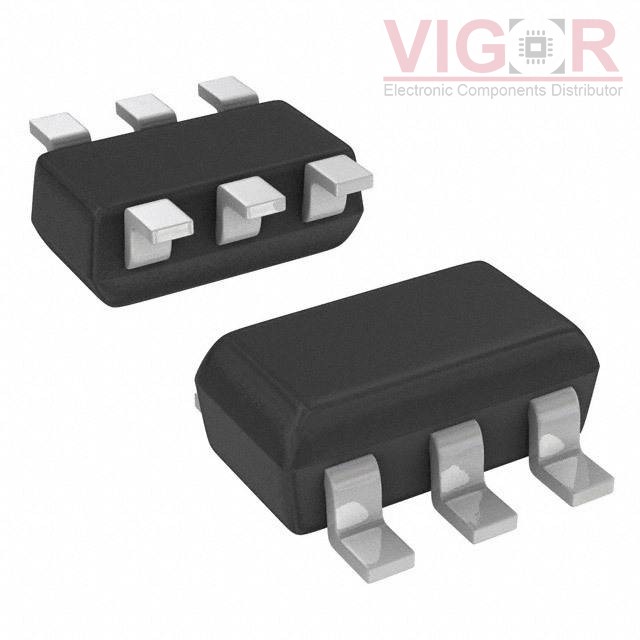

Image is for reference,
please contact us to get the real picture

Part No :

DIMD10A-7

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
TRANS NPN/PNP PREBIAS 0.3W SC74R
Catalog
Transistors - Bipolar (BJT) - Arrays, Pre-Biased
Shipped from
HK warehouse
Expected Shipping Date
Jul 03 - Jul 07 2025
DataSheet
DIMD10A-7 PDF
Availability
357 pieces
Unit Price
$0.43000

Current price of DIMD10A-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DIMD10A-7 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Transistor Type:1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max):100mA, 500mA
Voltage - Collector Emitter Breakdown (Max):50V
Resistor - Base (R1):10kOhms, 100Ohms
Resistor - Emitter Base (R2):10kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce:100 @ 1mA, 5V
Vce Saturation (Max) @ Ib, Ic:300mV @ 1mA, 10mA / 300mV @ 5mA, 100mA
Current - Collector Cutoff (Max):500nA
Frequency - Transition:250MHz, 200MHz
Power - Max:300mW
Mounting Type:Surface Mount
Package / Case:SC-74, SOT-457
Supplier Device Package:SC-74R
