ECH8502-TL-H

ECH8502-TL-H

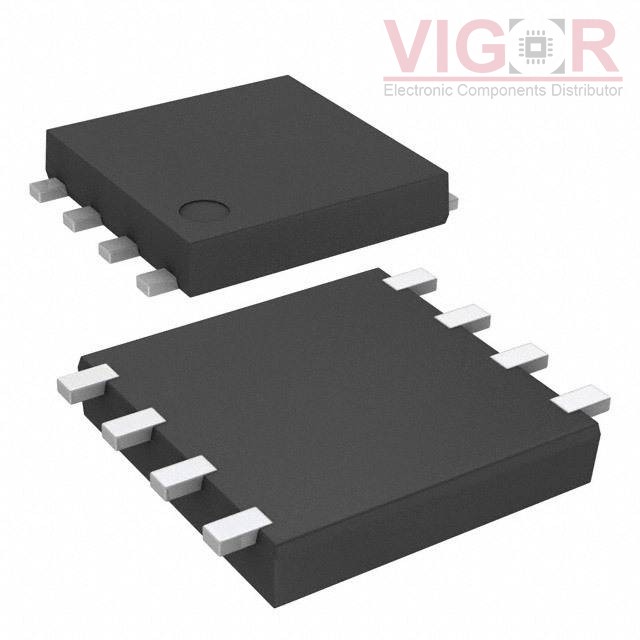

Image is for reference,
please contact us to get the real picture

Part No :

ECH8502-TL-H

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
TRANS NPN/PNP 100V/50V 5A 8ECH
Catalog
Transistors - Bipolar (BJT) - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
ECH8502-TL-H PDF
Availability
1439 pieces
Unit Price
$1.12000

Current price of ECH8502-TL-H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ECH8502-TL-H Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Transistor Type:NPN, PNP
Current - Collector (Ic) (Max):5A
Voltage - Collector Emitter Breakdown (Max):100V, 50V
Vce Saturation (Max) @ Ib, Ic:120mV @ 125mA, 2.5A
Current - Collector Cutoff (Max):100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:200 @ 500mA, 2V
Power - Max:1.6W
Frequency - Transition:290MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:8-SMD, Flat Lead
Supplier Device Package:8-ECH
