SMA4036

SMA4036

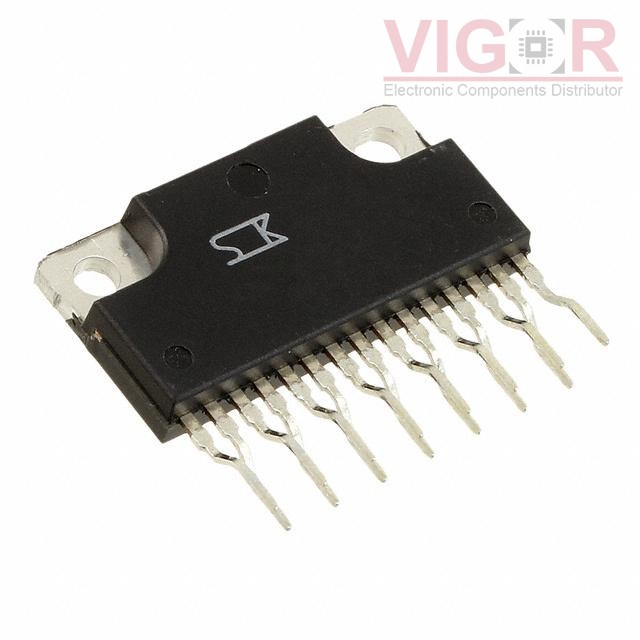

Image is for reference,
please contact us to get the real picture

Part No :

SMA4036

Manufacturer
Sanken Electric Co., Ltd.
Description
TRANS 6NPN DARL 120V 2A 15SIP
Catalog
Transistors - Bipolar (BJT) - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Jul 03 - Jul 07 2025
DataSheet
SMA4036 PDF
Availability
58 pieces
Unit Price
$2.50000

Current price of SMA4036 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SMA4036 Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Transistor Type:6 NPN Darlington
Current - Collector (Ic) (Max):2A
Voltage - Collector Emitter Breakdown (Max):120V
Vce Saturation (Max) @ Ib, Ic:1.5V @ 2mA, 1A
Current - Collector Cutoff (Max):10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:2000 @ 1A, 4V
Power - Max:4W
Frequency - Transition:50MHz
Operating Temperature:150°C (TJ)
Mounting Type:Through Hole
Package / Case:15-SIP Formed Leads
Supplier Device Package:15-SIP
