EC3H02BA-TL-H

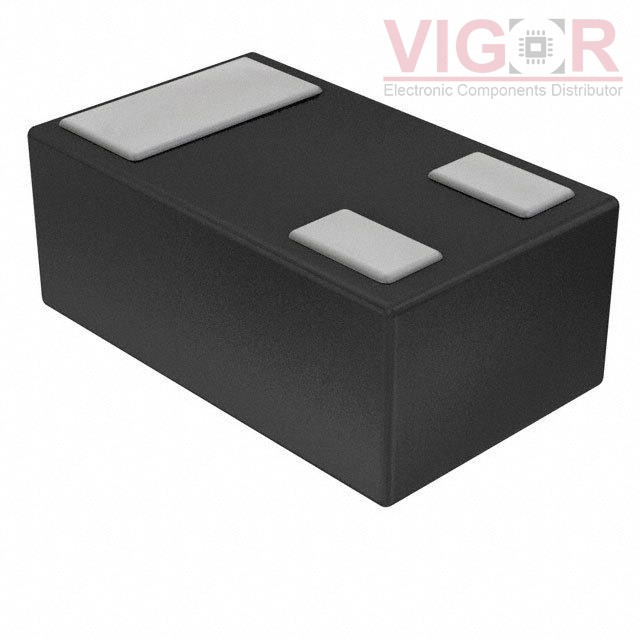

Image is for reference,
please contact us to get the real picture

Part No :: EC3H02BA-TL-H

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: RF TRANS NPN 10V 7GHZ 3-ECSP1006

Catalog: Transistors - Bipolar (BJT) - RF

Shipped from: HK warehouse

Expected Shipping Date: Jul 27 - Jul 31 2025

DataSheet: EC3H02BA-TL-H PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of EC3H02BA-TL-H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EC3H02BA-TL-H Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Transistor Type:	NPN
Voltage - Collector Emitter Breakdown (Max):	10V
Frequency - Transition:	7GHz
Noise Figure (dB Typ @ f):	1dB @ 1GHz
Gain:	8.5dB
Power - Max:	100mW
DC Current Gain (hFE) (Min) @ Ic, Vce:	120 @ 20mA, 5V
Current - Collector (Ic) (Max):	70mA
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	3-XFDFN
Supplier Device Package:	3-ECSP1006

Please confirm the specifications of the products when ordering.
