NSVDTA143EM3T5G

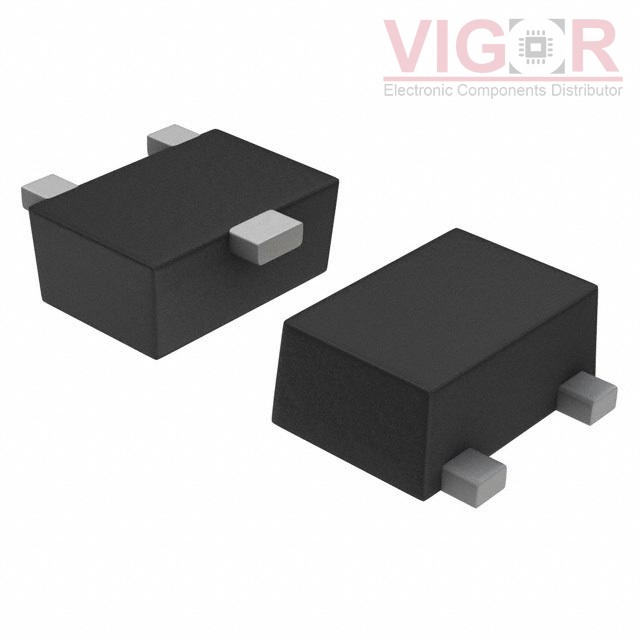

Image is for reference,
please contact us to get the real picture

Part No :: NSVDTA143EM3T5G

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: TRANS PREBIAS PNP 260MW SOT723

Catalog: Transistors - Bipolar (BJT) - Single, Pre-Biased

Shipped from: HK warehouse

Expected Shipping Date: Jul 15 - Jul 19 2025

DataSheet: NSVDTA143EM3T5G PDF

Availability: 88000 pieces

Unit Price: ~~$0.05745~~

Current price of NSVDTA143EM3T5G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NSVDTA143EM3T5G Specifications

Type	Description
Series:	Automotive, AEC-Q101
Package:	Tape & Reel (TR)
Part Status:	Active
Transistor Type:	PNP - Pre-Biased
Current - Collector (Ic) (Max):	100 mA
Voltage - Collector Emitter Breakdown (Max):	50 V
Resistor - Base (R1):	4.7 kOhms
Resistor - Emitter Base (R2):	4.7 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce:	15 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic:	250mV @ 1mA, 10mA
Current - Collector Cutoff (Max):	500nA
Frequency - Transition:	-
Power - Max:	260 mW
Mounting Type:	Surface Mount
Package / Case:	SOT-723
Supplier Device Package:	SOT-723

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
