PDTA114YQAZ

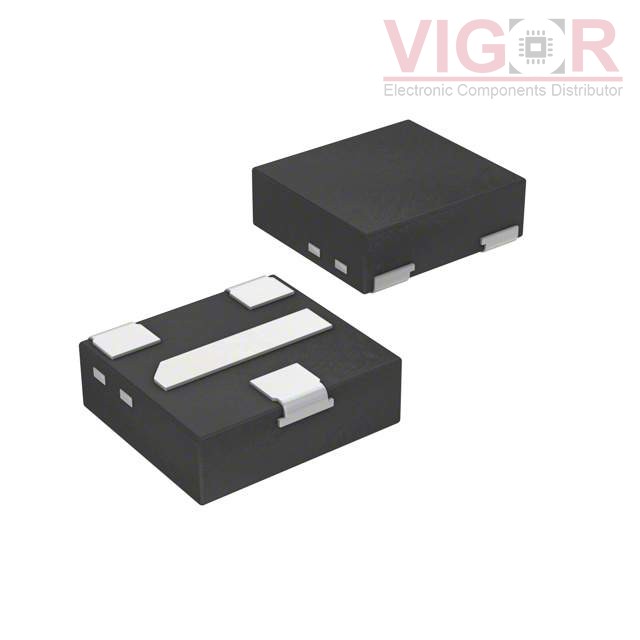

Image is for reference,
please contact us to get the real picture

Part No :

PDTA114YQAZ

Manufacturer
Nexperia
Description
TRANS PREBIAS PNP 3DFN
Catalog
Transistors - Bipolar (BJT) - Single, Pre-Biased
Shipped from
HK warehouse
Expected Shipping Date
Jul 12 - Jul 16 2025
DataSheet
PDTA114YQAZ PDF
Availability
0 pieces
Unit Price
$0.03610

Current price of PDTA114YQAZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:Automotive, AEC-Q101
Package:Tape & Reel (TR)
Part Status:Active
Transistor Type:PNP - Pre-Biased
Current - Collector (Ic) (Max):100 mA
Voltage - Collector Emitter Breakdown (Max):50 V
Resistor - Base (R1):10 kOhms
Resistor - Emitter Base (R2):47 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce:100 @ 5mA, 5V
Vce Saturation (Max) @ Ib, Ic:100mV @ 250µA, 5mA
Current - Collector Cutoff (Max):1µA
Frequency - Transition:180 MHz
Power - Max:280 mW
Mounting Type:Surface Mount
Package / Case:3-XDFN Exposed Pad
Supplier Device Package:DFN1010D-3
