SMUN2232T1G

SMUN2232T1G

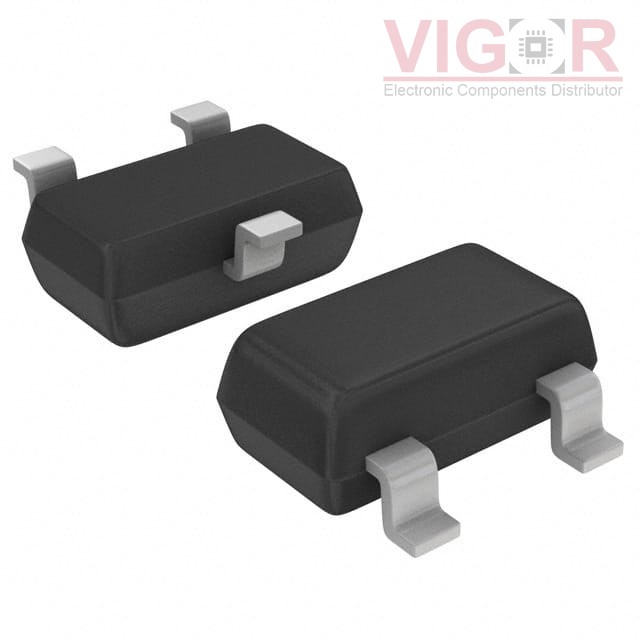

Image is for reference,
please contact us to get the real picture

Part No :

SMUN2232T1G

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
TRANS PREBIAS NPN 50V 100MA SC59
Catalog
Transistors - Bipolar (BJT) - Single, Pre-Biased
Shipped from
HK warehouse
Expected Shipping Date
Jul 16 - Jul 20 2025
DataSheet
SMUN2232T1G PDF
Availability
2147483647 pieces
Unit Price
$0.22000

Current price of SMUN2232T1G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SMUN2232T1G Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Transistor Type:NPN - Pre-Biased
Current - Collector (Ic) (Max):100 mA
Voltage - Collector Emitter Breakdown (Max):50 V
Resistor - Base (R1):4.7 kOhms
Resistor - Emitter Base (R2):4.7 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce:15 @ 5mA, 10V
Vce Saturation (Max) @ Ib, Ic:250mV @ 1mA, 10mA
Current - Collector Cutoff (Max):500nA
Frequency - Transition:-
Power - Max:230 mW
Mounting Type:Surface Mount
Package / Case:TO-236-3, SC-59, SOT-23-3
Supplier Device Package:SC-59
