2N5303

2N5303

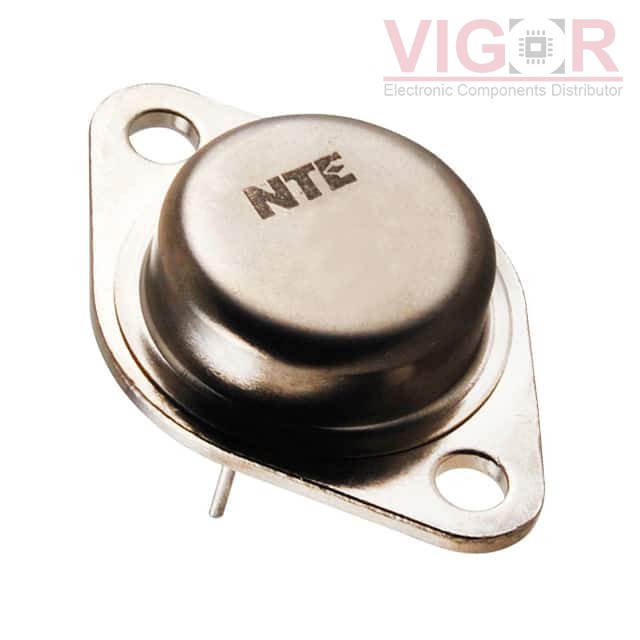

Image is for reference,
please contact us to get the real picture

Part No :

2N5303

Manufacturer
NTE Electronics, Inc.
Description
TRANS NPN 80V 20A TO3
Catalog
Transistors - Bipolar (BJT) - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
2N5303 PDF
Availability
40 pieces
Unit Price
$4.32000

Current price of 2N5303 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2N5303 Specifications
Type Description
Series:-
Package:Bag
Part Status:Active
Transistor Type:NPN
Current - Collector (Ic) (Max):20 A
Voltage - Collector Emitter Breakdown (Max):80 V
Vce Saturation (Max) @ Ib, Ic:2V @ 4A, 20A
Current - Collector Cutoff (Max):5mA
DC Current Gain (hFE) (Min) @ Ic, Vce:15 @ 15A, 2V
Power - Max:200 W
Frequency - Transition:2MHz
Operating Temperature:-65°C ~ 200°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-204AA, TO-3
Supplier Device Package:TO-3
