2SC5100

2SC5100

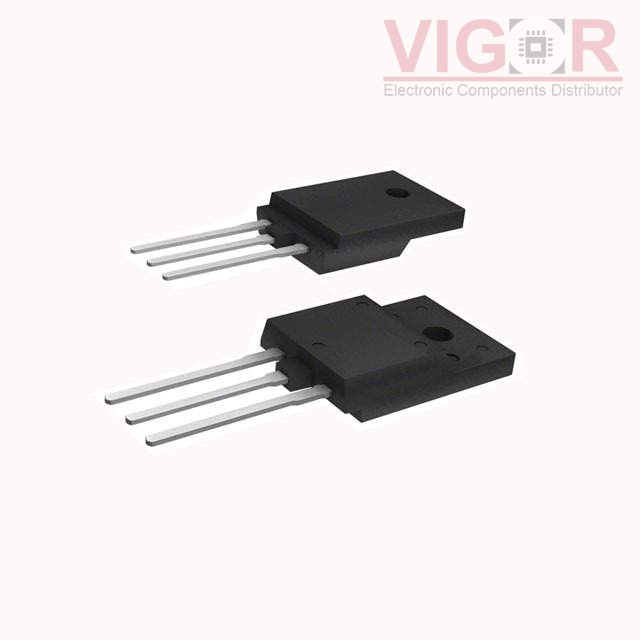

Image is for reference,
please contact us to get the real picture

Part No :

2SC5100

Manufacturer
Sanken Electric Co., Ltd.
Description
TRANS NPN 120V 8A TO3PF
Catalog
Transistors - Bipolar (BJT) - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
2SC5100 PDF
Availability
1833 pieces
Unit Price
$2.63000

Current price of 2SC5100 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2SC5100 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Transistor Type:NPN
Current - Collector (Ic) (Max):8 A
Voltage - Collector Emitter Breakdown (Max):120 V
Vce Saturation (Max) @ Ib, Ic:500mV @ 300mA, 3A
Current - Collector Cutoff (Max):10µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:50 @ 3A, 4V
Power - Max:75 W
Frequency - Transition:20MHz
Operating Temperature:150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-3P-3 Full Pack
Supplier Device Package:TO-3P
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
