2SA16740SA

2SA16740SA

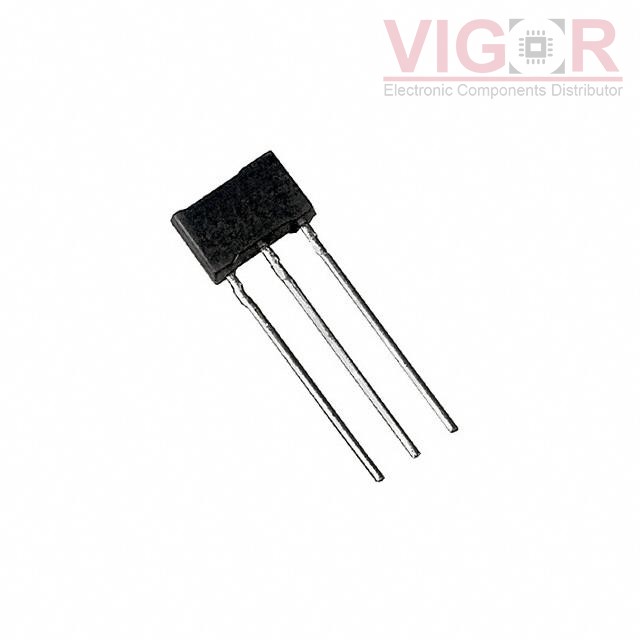

Image is for reference,
please contact us to get the real picture

Part No :

2SA16740SA

Manufacturer
Panasonic
Description
TRANS PNP 80V 1A MT-2
Catalog
Transistors - Bipolar (BJT) - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 09 - Jul 13 2025
DataSheet
2SA16740SA PDF
Availability
2551 pieces
Unit Price
$0.39000

Current price of 2SA16740SA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2SA16740SA Specifications
Type Description
Series:-
Package:Cut Tape (CT)Tape & Box (TB)
Part Status:Obsolete
Transistor Type:PNP
Current - Collector (Ic) (Max):1 A
Voltage - Collector Emitter Breakdown (Max):80 V
Vce Saturation (Max) @ Ib, Ic:300mV @ 50mA, 500mA
Current - Collector Cutoff (Max):100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:170 @ 100mA, 2V
Power - Max:1 W
Frequency - Transition:120MHz
Operating Temperature:150°C (TJ)
Mounting Type:Through Hole
Package / Case:3-SIP
Supplier Device Package:MT-2-A1
