2N5680

2N5680

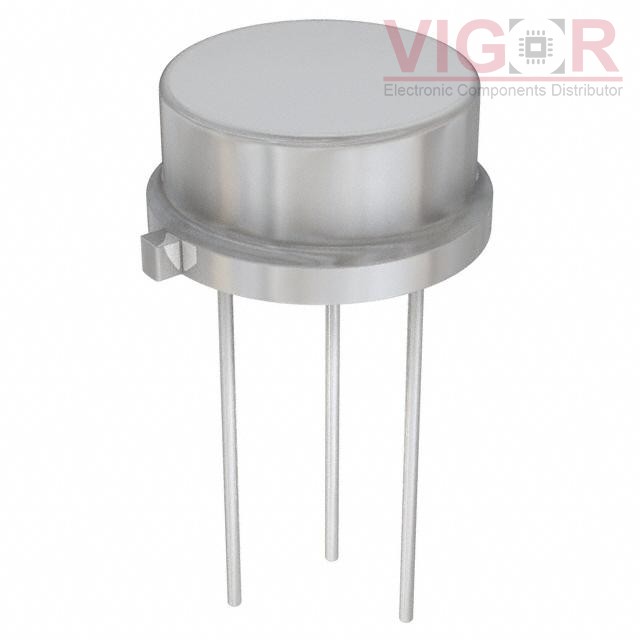

Image is for reference,
please contact us to get the real picture

Part No :

2N5680

Manufacturer
Roving Networks / Microchip Technology
Description
TRANS PNP 120V 1A TO-39
Catalog
Transistors - Bipolar (BJT) - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 09 - Jul 13 2025
DataSheet
2N5680 PDF
Availability
0 pieces
Unit Price
$17.03000

Current price of 2N5680 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2N5680 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Transistor Type:PNP
Current - Collector (Ic) (Max):1 A
Voltage - Collector Emitter Breakdown (Max):120 V
Vce Saturation (Max) @ Ib, Ic:1V @ 50mA, 500mA
Current - Collector Cutoff (Max):10µA
DC Current Gain (hFE) (Min) @ Ic, Vce:40 @ 250mA, 2V
Power - Max:1 W
Frequency - Transition:-
Operating Temperature:-65°C ~ 200°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-205AD, TO-39-3 Metal Can
Supplier Device Package:TO-39 (TO-205AD)
