PMBT3904QAZ

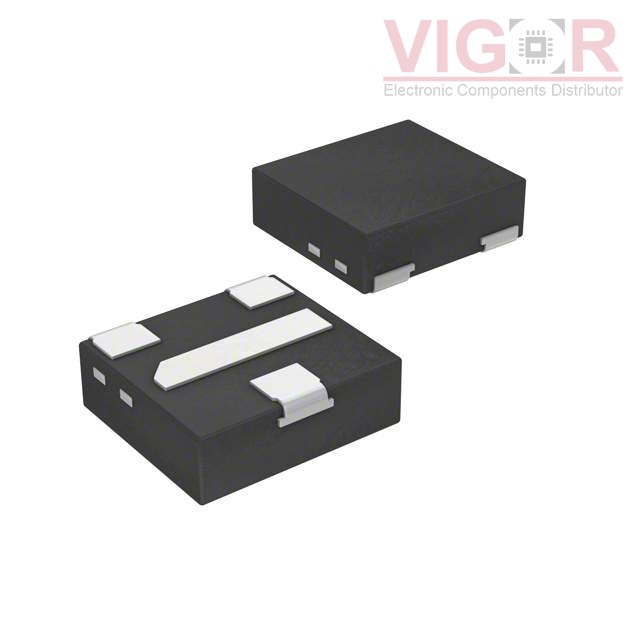

Image is for reference,
please contact us to get the real picture

Part No :: PMBT3904QAZ

Manufacturer: Nexperia

Description: PMBT3904QA/SOT1215/DFN1010D-3

Catalog: Transistors - Bipolar (BJT) - Single

Shipped from: HK warehouse

Expected Shipping Date: Aug 16 - Aug 20 2025

DataSheet: PMBT3904QAZ PDF

Availability: 0 pieces

Unit Price: ~~$0.04560~~

Current price of PMBT3904QAZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PMBT3904QAZ Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Transistor Type:	NPN
Current - Collector (Ic) (Max):	200 mA
Voltage - Collector Emitter Breakdown (Max):	40 V
Vce Saturation (Max) @ Ib, Ic:	300mV @ 5mA, 50mA
Current - Collector Cutoff (Max):	50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:	100 @ 10mA, 1V
Power - Max:	440 mW
Frequency - Transition:	300MHz
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	3-XDFN Exposed Pad
Supplier Device Package:	DFN1010D-3
