DSS5220T-13

DSS5220T-13

Image is for reference,
please contact us to get the real picture

Part No :

DSS5220T-13

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
SS LOW SAT TRANSISTOR SOT23 T&R
Catalog
Transistors - Bipolar (BJT) - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 17 - Jul 21 2025
DataSheet
DSS5220T-13 PDF
Availability
10000 pieces
Unit Price
$0.08215

Current price of DSS5220T-13 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DSS5220T-13 Specifications
Type Description
Series:Automotive, AEC-Q101
Package:Tape & Reel (TR)
Part Status:Active
Transistor Type:PNP
Current - Collector (Ic) (Max):2 A
Voltage - Collector Emitter Breakdown (Max):20 V
Vce Saturation (Max) @ Ib, Ic:250mV @ 100mA, 2A
Current - Collector Cutoff (Max):100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:225 @ 500mA, 2V
Power - Max:1.2 W
Frequency - Transition:100MHz
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-236-3, SC-59, SOT-23-3
Supplier Device Package:SOT-23
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT KST4126MTF

KST4126MTF

TRANS PNP 25V 200MA SOT23-3

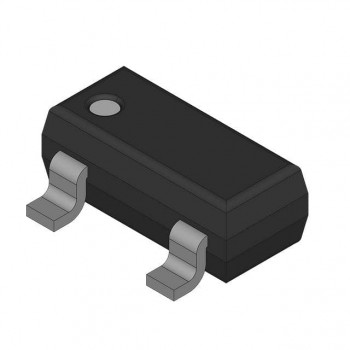

HOT MMBT4401LT1

MMBT4401LT1

TRANS NPN 40V 600MA SOT23-3

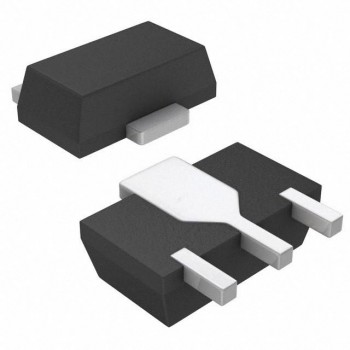

HOT 2SD1620-TD-E
