NTE2323

NTE2323

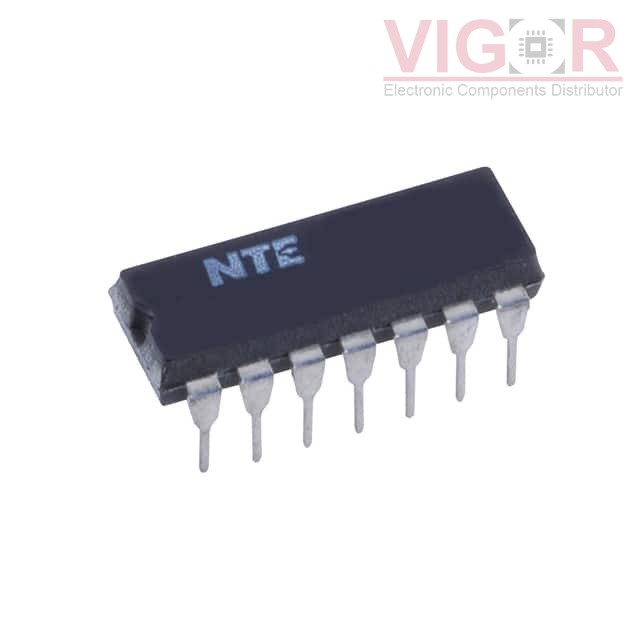

Image is for reference,
please contact us to get the real picture

Part No :

NTE2323

Manufacturer
NTE Electronics, Inc.
Description
TRANS NPN 200V 500MA 14DIP
Catalog
Transistors - Bipolar (BJT) - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 03 - Aug 07 2025
DataSheet
NTE2323 PDF
Availability
68 pieces
Unit Price
$6.78000

Current price of NTE2323 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NTE2323 Specifications
Type Description
Series:-
Package:Bag
Part Status:Active
Transistor Type:NPN
Current - Collector (Ic) (Max):500 mA
Voltage - Collector Emitter Breakdown (Max):200 V
Vce Saturation (Max) @ Ib, Ic:500mV @ 2mA, 20mA
Current - Collector Cutoff (Max):100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:40 @ 30mA, 10V
Power - Max:750 mW
Frequency - Transition:80MHz
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:14-DIP (0.300", 7.62mm)
Supplier Device Package:14-PDIP
