BC56-16PA-7

BC56-16PA-7

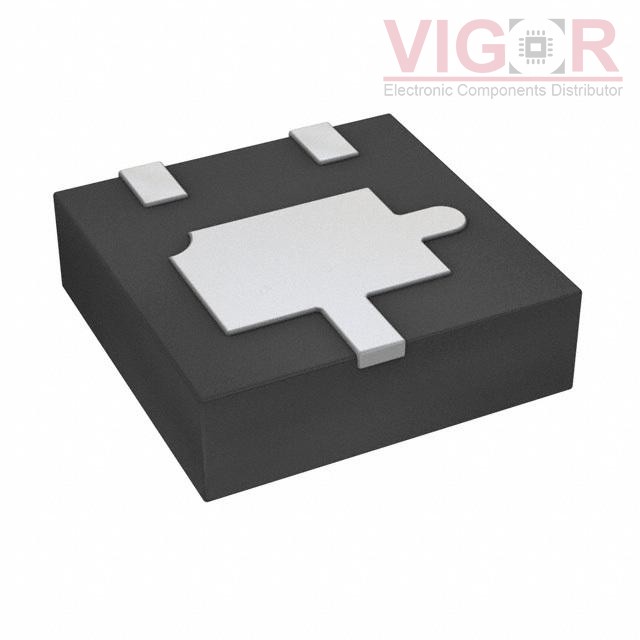

Image is for reference,
please contact us to get the real picture

Part No :

BC56-16PA-7

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
TRANS NPN 80V 1A UDFN
Catalog
Transistors - Bipolar (BJT) - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
BC56-16PA-7 PDF
Availability
4095 pieces
Unit Price
$0.38000

Current price of BC56-16PA-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BC56-16PA-7 Specifications
Type Description
Series:Automotive, AEC-Q101
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Transistor Type:NPN
Current - Collector (Ic) (Max):1 A
Voltage - Collector Emitter Breakdown (Max):80 V
Vce Saturation (Max) @ Ib, Ic:500mV @ 50mA, 500mA
Current - Collector Cutoff (Max):100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:100 @ 150mA, 2V
Power - Max:520 mW
Frequency - Transition:125MHz
Operating Temperature:-65°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:3-UDFN Exposed Pad
Supplier Device Package:U-DFN2020-3
