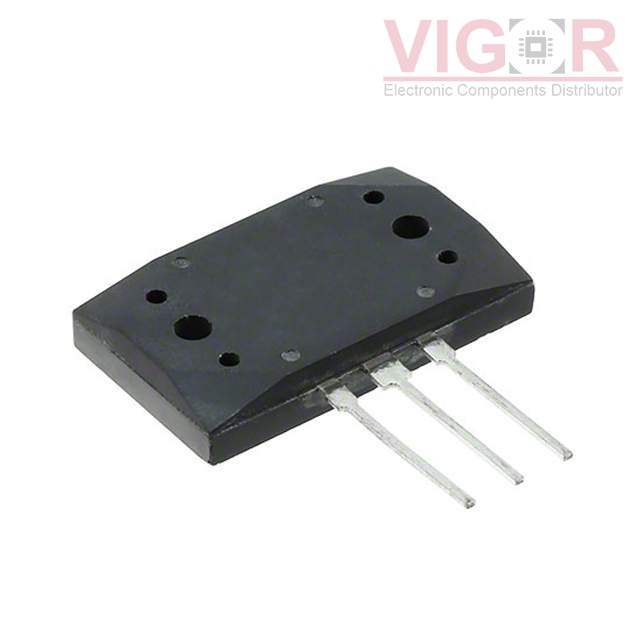

2SD2401

2SD2401

Image is for reference,
please contact us to get the real picture

Part No :

2SD2401

Manufacturer
Sanken Electric Co., Ltd.
Description
TRANS NPN DARL 150V 12A MT200
Catalog
Transistors - Bipolar (BJT) - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
2SD2401 PDF
Availability
89 pieces
Unit Price
$6.23000

Current price of 2SD2401 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2SD2401 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Obsolete
Transistor Type:NPN - Darlington
Current - Collector (Ic) (Max):12 A
Voltage - Collector Emitter Breakdown (Max):150 V
Vce Saturation (Max) @ Ib, Ic:2.5V @ 7mA, 7A
Current - Collector Cutoff (Max):100µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:5000 @ 7A, 4V
Power - Max:150 W
Frequency - Transition:55MHz
Operating Temperature:150°C (TJ)
Mounting Type:Through Hole
Package / Case:3-ESIP
Supplier Device Package:MT-200
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT JANTXV2N2605

JANTXV2N2605

TRANS PNP 60V 0.03A TO46
HOT BC547BBK

BC547BBK

BJT TO-92BK 45V 100MA
HOT SMMBT3904TT1G

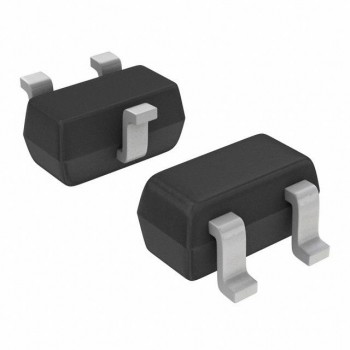

SMMBT3904TT1G
