2SD2138APA

2SD2138APA

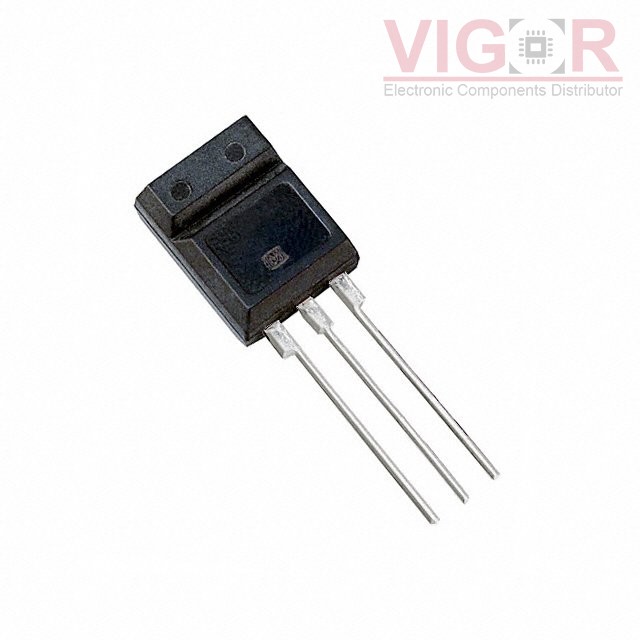

Image is for reference,
please contact us to get the real picture

Part No :

2SD2138APA

Manufacturer
Panasonic
Description
TRANS NPN DARL 80V 2A MT-4
Catalog
Transistors - Bipolar (BJT) - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 03 - Aug 07 2025
DataSheet
2SD2138APA PDF
Availability
1509 pieces
Unit Price
$0.86000

Current price of 2SD2138APA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2SD2138APA Specifications
Type Description
Series:-
Package:Cut Tape (CT)Tape & Box (TB)
Part Status:Obsolete
Transistor Type:NPN - Darlington
Current - Collector (Ic) (Max):2 A
Voltage - Collector Emitter Breakdown (Max):80 V
Vce Saturation (Max) @ Ib, Ic:2.5V @ 8mA, 2A
Current - Collector Cutoff (Max):100µA
DC Current Gain (hFE) (Min) @ Ic, Vce:4000 @ 2A, 4V
Power - Max:15 W
Frequency - Transition:20MHz
Operating Temperature:150°C (TJ)
Mounting Type:Through Hole
Package / Case:3-SIP
Supplier Device Package:MT-4-A1
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT STN83003

STN83003

TRANS NPN 400V 1.5A SOT-223

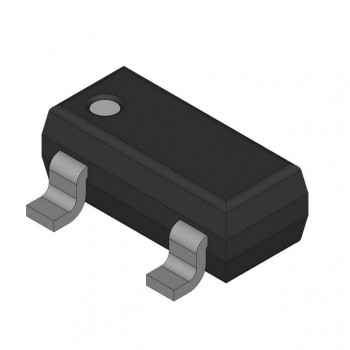

HOT BC847ALT1
