2SD20640S

2SD20640S

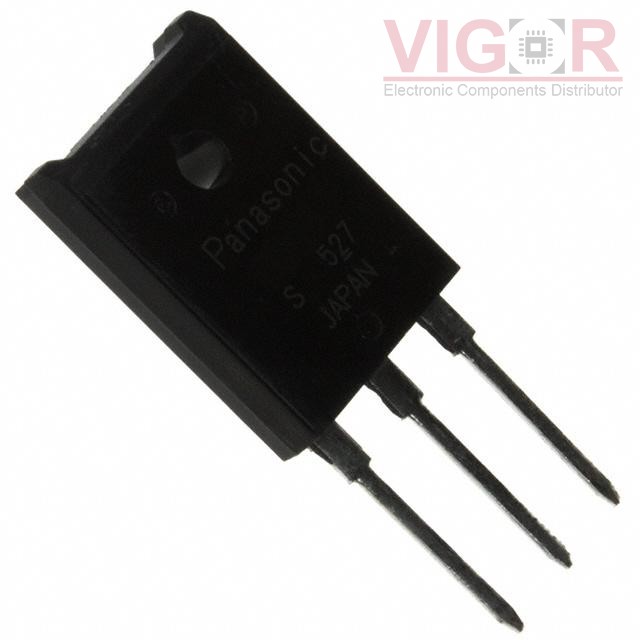

Image is for reference,
please contact us to get the real picture

Part No :

2SD20640S

Manufacturer
Panasonic
Description
TRANS NPN 120V 6A TOP-3F
Catalog
Transistors - Bipolar (BJT) - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
2SD20640S PDF
Availability
10 pieces
Unit Price
$2.61000

Current price of 2SD20640S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2SD20640S Specifications
Type Description
Series:-
Package:Bulk
Part Status:Obsolete
Transistor Type:NPN
Current - Collector (Ic) (Max):6 A
Voltage - Collector Emitter Breakdown (Max):120 V
Vce Saturation (Max) @ Ib, Ic:2V @ 400mA, 4A
Current - Collector Cutoff (Max):50µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:80 @ 1A, 5V
Power - Max:3 W
Frequency - Transition:20MHz
Operating Temperature:150°C (TJ)
Mounting Type:Through Hole
Package / Case:TOP-3F
Supplier Device Package:TOP-3F-A1
