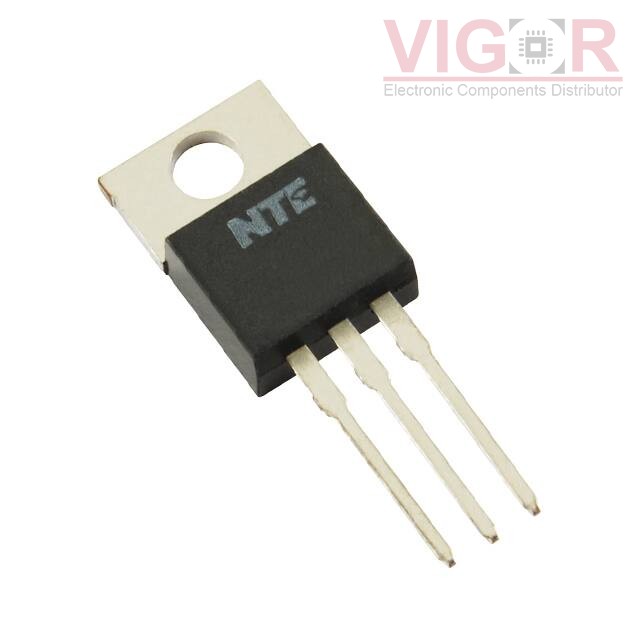

2N5496

Image is for reference,
please contact us to get the real picture

Part No :: 2N5496

Manufacturer: NTE Electronics, Inc.

Description: TRANS NPN 70V 7A TO220

Catalog: Transistors - Bipolar (BJT) - Single

Shipped from: HK warehouse

Expected Shipping Date: Jul 09 - Jul 13 2025

DataSheet: 2N5496 PDF

Availability: 176 pieces

Unit Price: ~~$1.16000~~

Current price of 2N5496 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2N5496 Specifications

Type	Description
Series:	-
Package:	Bag
Part Status:	Active
Transistor Type:	NPN
Current - Collector (Ic) (Max):	7 A
Voltage - Collector Emitter Breakdown (Max):	70 V
Vce Saturation (Max) @ Ib, Ic:	3.5V @ 3A, 7A
Current - Collector Cutoff (Max):	1mA
DC Current Gain (hFE) (Min) @ Ic, Vce:	30 @ 2A, 4V
Power - Max:	40 W
Frequency - Transition:	4MHz
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-220-3
Supplier Device Package:	TO-220

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

BC807-40W,135

TRANS PNP 45V 0.5A SOT323

HOT

FMMT718TC

TRANS PNP 20V 1.5A SOT23-3

HOT

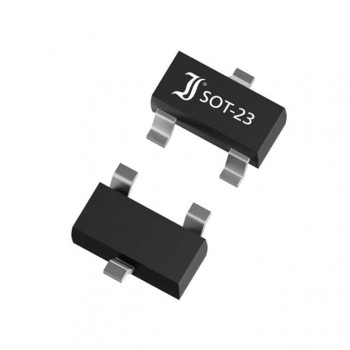

BC859B-AQ
