2N5301

2N5301

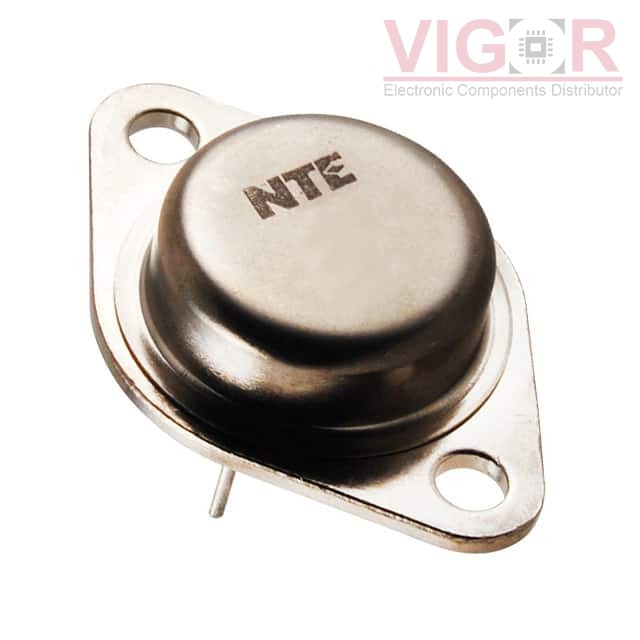

Image is for reference,
please contact us to get the real picture

Part No :

2N5301

Manufacturer
NTE Electronics, Inc.
Description
TRANS NPN 40V 30A TO3
Catalog
Transistors - Bipolar (BJT) - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
2N5301 PDF
Availability
52 pieces
Unit Price
$4.24000

Current price of 2N5301 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2N5301 Specifications
Type Description
Series:-
Package:Bag
Part Status:Active
Transistor Type:NPN
Current - Collector (Ic) (Max):30 A
Voltage - Collector Emitter Breakdown (Max):40 V
Vce Saturation (Max) @ Ib, Ic:3V @ 6A, 30A
Current - Collector Cutoff (Max):5mA
DC Current Gain (hFE) (Min) @ Ic, Vce:15 @ 10A, 2V
Power - Max:200 W
Frequency - Transition:2MHz
Operating Temperature:-65°C ~ 200°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-204AA, TO-3
Supplier Device Package:TO-3
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT KSP44BU

KSP44BU

TRANS NPN 400V 300MA TO92-3
HOT MPSA28

MPSA28

SMALL SIGNAL BIPOLAR TRANSISTOR

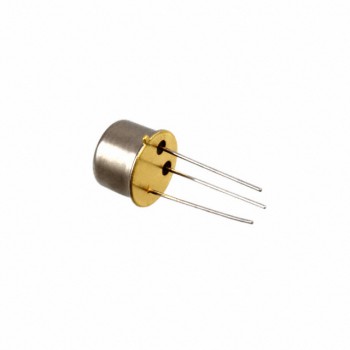

HOT JANTX2N1711S
