2SD1423A

2SD1423A

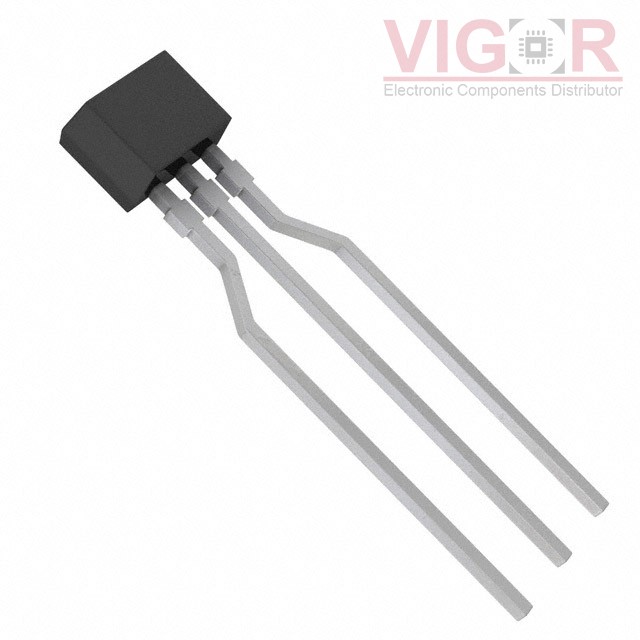

Image is for reference,
please contact us to get the real picture

Part No :

2SD1423A

Manufacturer
Panasonic
Description
TRANS NPN 50V 0.5A NS-B1
Catalog
Transistors - Bipolar (BJT) - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 21 - Aug 25 2025
DataSheet
2SD1423A PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of 2SD1423A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2SD1423A Specifications
Type Description
Series:-
Package:Cut Tape (CT)Tape & Box (TB)
Part Status:Obsolete
Transistor Type:NPN
Current - Collector (Ic) (Max):500 mA
Voltage - Collector Emitter Breakdown (Max):50 V
Vce Saturation (Max) @ Ib, Ic:600mV @ 30mA, 300mA
Current - Collector Cutoff (Max):1µA
DC Current Gain (hFE) (Min) @ Ic, Vce:85 @ 150mA, 10V
Power - Max:300 mW
Frequency - Transition:200MHz
Operating Temperature:150°C (TJ)
Mounting Type:Through Hole
Package / Case:3-SSIP
Supplier Device Package:NS-B1
