BD745C-S

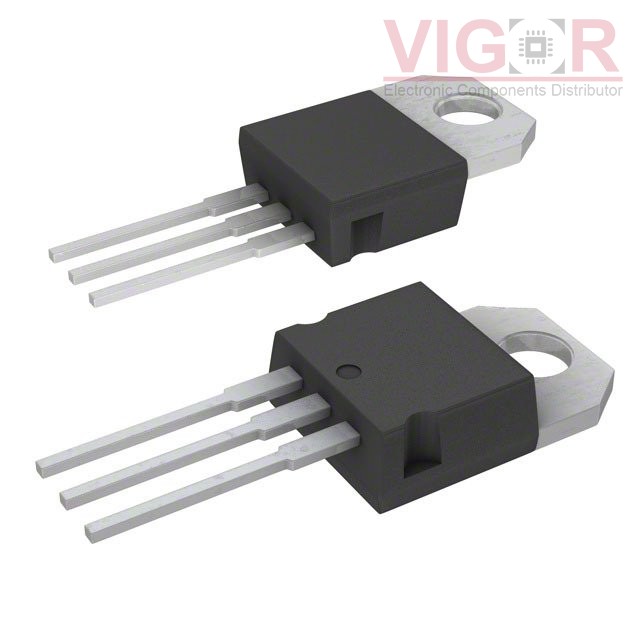

Image is for reference,
please contact us to get the real picture

Part No :: BD745C-S

Manufacturer: J.W. Miller / Bourns

Description: TRANS NPN 110V 20A

Catalog: Transistors - Bipolar (BJT) - Single

Shipped from: HK warehouse

Expected Shipping Date: Aug 06 - Aug 10 2025

DataSheet: BD745C-S PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of BD745C-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BD745C-S Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Transistor Type:	NPN
Current - Collector (Ic) (Max):	20 A
Voltage - Collector Emitter Breakdown (Max):	110 V
Vce Saturation (Max) @ Ib, Ic:	3V @ 5A, 20A
Current - Collector Cutoff (Max):	100µA
DC Current Gain (hFE) (Min) @ Ic, Vce:	20 @ 5A, 4V
Power - Max:	3.5 W
Frequency - Transition:	-
Operating Temperature:	-65°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-218-3
Supplier Device Package:	SOT-93

Please confirm the specifications of the products when ordering.
