NTMFD5C680NLT1G

NTMFD5C680NLT1G

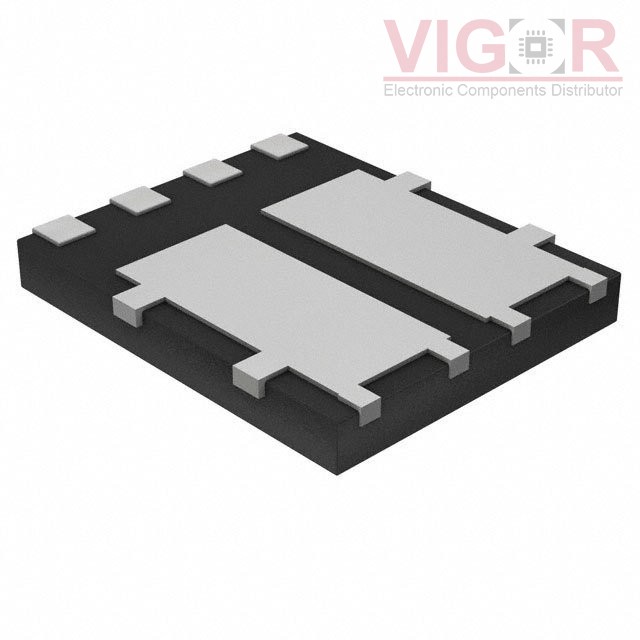

Image is for reference,
please contact us to get the real picture

Part No :

NTMFD5C680NLT1G

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
T6 60V LL SO8FL DUAL
Catalog
Transistors - FETs, MOSFETs - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
NTMFD5C680NLT1G PDF
Availability
0 pieces
Unit Price
$0.77352

Current price of NTMFD5C680NLT1G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NTMFD5C680NLT1G Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:2 N-Channel (Dual)
FET Feature:Standard
Drain to Source Voltage (Vdss):60V
Current - Continuous Drain (Id) @ 25°C:7.5A (Ta), 26A (Tc)
Rds On (Max) @ Id, Vgs:28mOhm @ 5A, 10V
Vgs(th) (Max) @ Id:2.2V @ 13µA
Gate Charge (Qg) (Max) @ Vgs:5nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:350pF @ 25V
Power - Max:3W (Ta), 19W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Package / Case:8-PowerTDFN
Supplier Device Package:8-DFN (5x6) Dual Flag (SO8FL-Dual)
