RM2520ES6

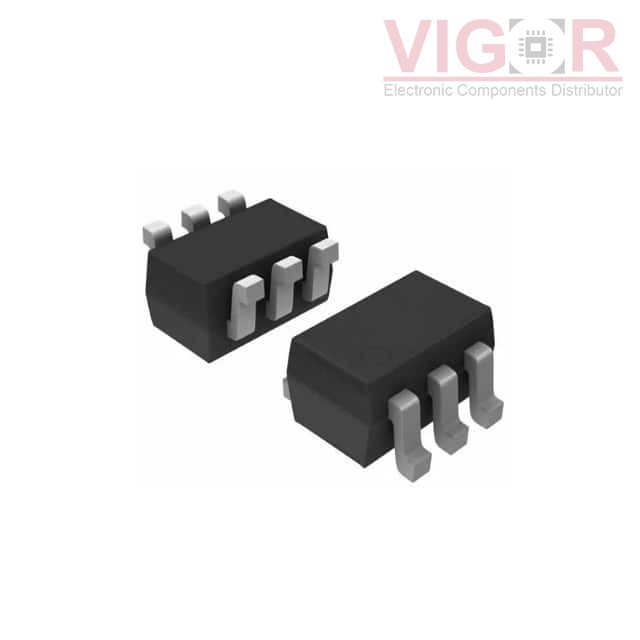

Image is for reference,
please contact us to get the real picture

Part No :: RM2520ES6

Manufacturer: Rectron USA

Description: MOSFET N&P-CH 25/20V SOT23-6

Catalog: Transistors - FETs, MOSFETs - Arrays

Shipped from: HK warehouse

Expected Shipping Date: Jul 06 - Jul 10 2025

DataSheet: RM2520ES6 PDF

Availability: 1000000 pieces

Unit Price: ~~$0.05700~~

Current price of RM2520ES6 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RM2520ES6 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
FET Type:	N and P-Channel
FET Feature:	Standard
Drain to Source Voltage (Vdss):	25V, 20V
Current - Continuous Drain (Id) @ 25°C:	1.1A (Ta), 800mA (Ta)
Rds On (Max) @ Id, Vgs:	1.2Ohm @ 500mA, 4.5V, 600mOhm @ 500mA, 4.5V
Vgs(th) (Max) @ Id:	1V @ 250µA, 1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	1.8pC @ 4.5V, 0.6pC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:	87pF @ 10V, 30pF @ 10V
Power - Max:	800mW (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	SOT-23-6
Supplier Device Package:	SOT-23-6

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
