DMN2300UFL4-7

DMN2300UFL4-7

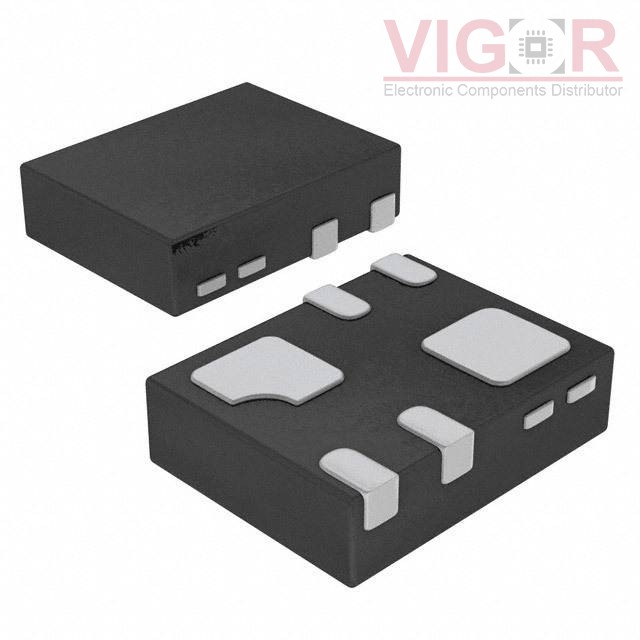

Image is for reference,
please contact us to get the real picture

Part No :

DMN2300UFL4-7

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
MOSFET 2N-CH 20V 2.11A 6DFN
Catalog
Transistors - FETs, MOSFETs - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
DMN2300UFL4-7 PDF
Availability
90000 pieces
Unit Price
$0.14756

Current price of DMN2300UFL4-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DMN2300UFL4-7 Specifications
Type Description
Series:Automotive, AEC-Q101
Package:Tape & Reel (TR)
Part Status:Active
FET Type:2 N-Channel (Dual)
FET Feature:Standard
Drain to Source Voltage (Vdss):20V
Current - Continuous Drain (Id) @ 25°C:2.11A (Ta)
Rds On (Max) @ Id, Vgs:195mOhm @ 300mA, 4.5V
Vgs(th) (Max) @ Id:950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs:3.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:128.6pF @ 25V
Power - Max:1.39W
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:6-XFDFN Exposed Pad
Supplier Device Package:X2-DFN1310-6 (Type B)
