ECH8693R-TL-W

ECH8693R-TL-W

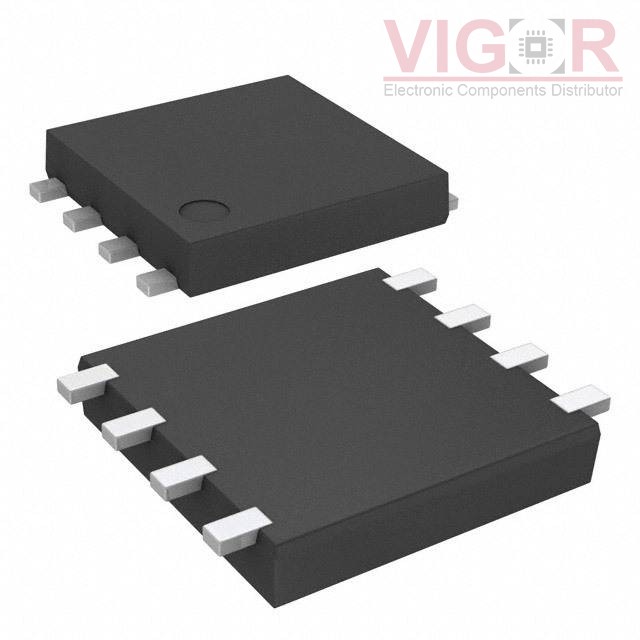

Image is for reference,
please contact us to get the real picture

Part No :

ECH8693R-TL-W

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
MOSFET 2N-CH 24V 14A SOT28
Catalog
Transistors - FETs, MOSFETs - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
ECH8693R-TL-W PDF
Availability
0 pieces
Unit Price
$0.59000

Current price of ECH8693R-TL-W is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ECH8693R-TL-W Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:2 N-Channel (Dual) Common Drain
FET Feature:Logic Level Gate, 2.5V Drive
Drain to Source Voltage (Vdss):24V
Current - Continuous Drain (Id) @ 25°C:14A
Rds On (Max) @ Id, Vgs:7mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id:-
Gate Charge (Qg) (Max) @ Vgs:13nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:-
Power - Max:1.4W
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:8-SMD, Flat Lead
Supplier Device Package:SOT-28FL/ECH8
