AON2803

AON2803

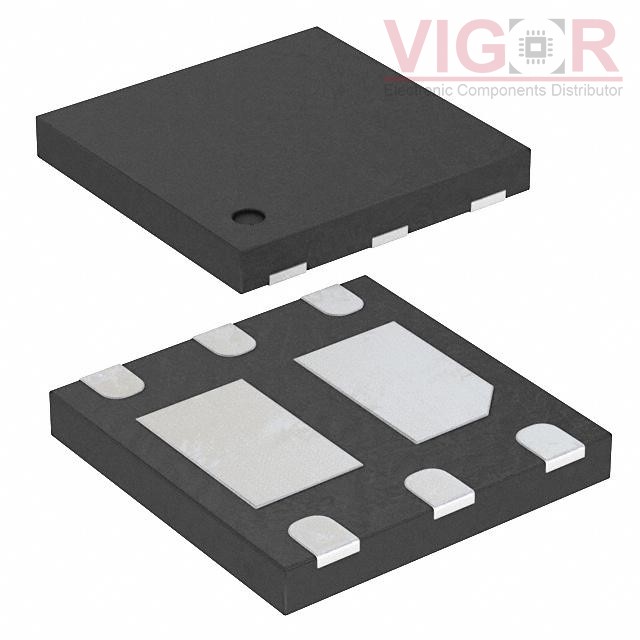

Image is for reference,
please contact us to get the real picture

Part No :

AON2803

Manufacturer
Alpha and Omega Semiconductor, Inc.
Description
MOSFET 2P-CH 20V 3.8A 6DFN
Catalog
Transistors - FETs, MOSFETs - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
AON2803 PDF
Availability
0 pieces
Unit Price
$0.24893

Current price of AON2803 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AON2803 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
FET Type:2 P-Channel (Dual)
FET Feature:Logic Level Gate
Drain to Source Voltage (Vdss):20V
Current - Continuous Drain (Id) @ 25°C:3.8A
Rds On (Max) @ Id, Vgs:70mOhm @ 3.8A, 4.5V
Vgs(th) (Max) @ Id:1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:12nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:560pF @ 10V
Power - Max:1.5W
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:6-WDFN Exposed Pad
Supplier Device Package:6-DFN-EP (2x2)
