CSD87381P

CSD87381P

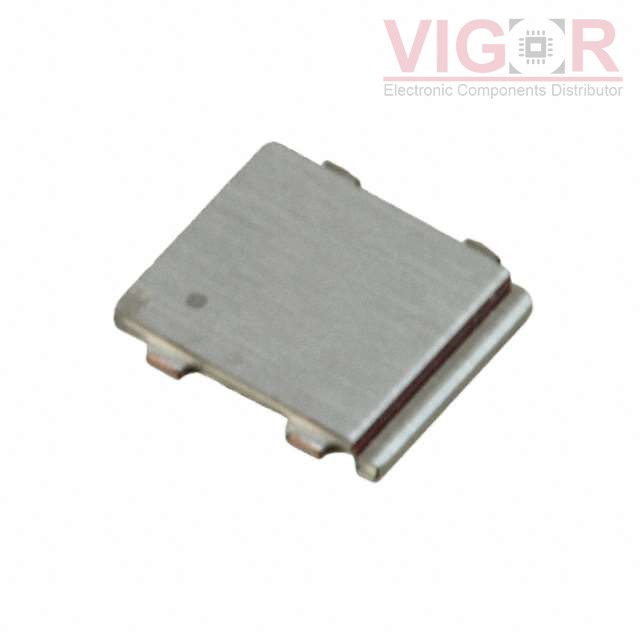

Image is for reference,
please contact us to get the real picture

Part No :

CSD87381P

Manufacturer
Texas Instruments
Description
MOSFET 2N-CH 30V 15A 5PTAB
Catalog
Transistors - FETs, MOSFETs - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Jul 04 - Jul 08 2025
DataSheet
CSD87381P PDF
Availability
0 pieces
Unit Price
$0.93000

Current price of CSD87381P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CSD87381P Specifications
Type Description
Series:NexFET™
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:2 N-Channel (Half Bridge)
FET Feature:Logic Level Gate
Drain to Source Voltage (Vdss):30V
Current - Continuous Drain (Id) @ 25°C:15A
Rds On (Max) @ Id, Vgs:16.3mOhm @ 8A, 8V
Vgs(th) (Max) @ Id:1.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:564pF @ 15V
Power - Max:4W
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:5-LGA
Supplier Device Package:5-PTAB (3x2.5)
