BSG0811NDATMA1

BSG0811NDATMA1

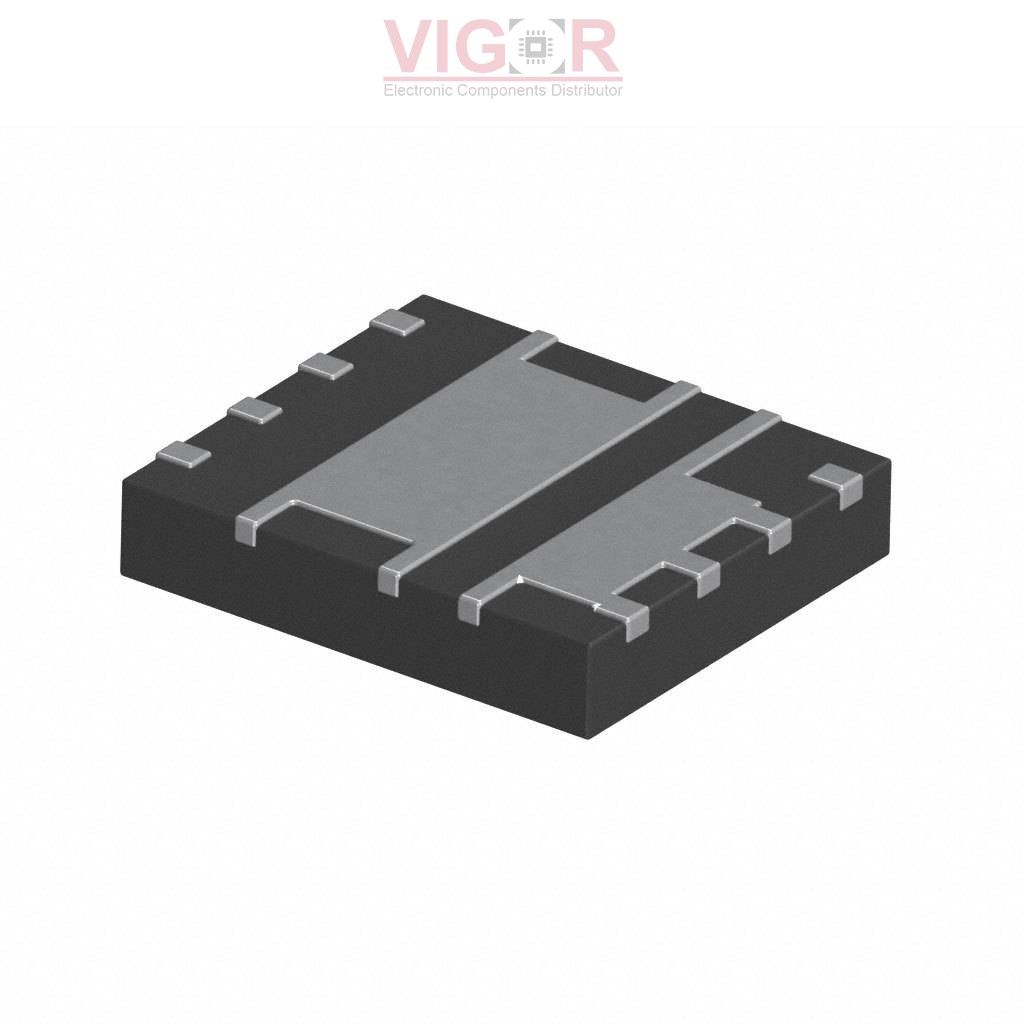

Image is for reference,
please contact us to get the real picture

Part No :

BSG0811NDATMA1

Manufacturer
IR (Infineon Technologies)
Description
MOSFET 2N-CH 25V 19A/41A 8TISON
Catalog
Transistors - FETs, MOSFETs - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
BSG0811NDATMA1 PDF
Availability
7605 pieces
Unit Price
$2.47000

Current price of BSG0811NDATMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BSG0811NDATMA1 Specifications
Type Description
Series:OptiMOS™
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:2 N-Channel (Dual) Asymmetrical
FET Feature:Logic Level Gate, 4.5V Drive
Drain to Source Voltage (Vdss):25V
Current - Continuous Drain (Id) @ 25°C:19A, 41A
Rds On (Max) @ Id, Vgs:3mOhm @ 20A, 10V
Vgs(th) (Max) @ Id:2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:8.4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:1100pF @ 12V
Power - Max:2.5W
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:8-PowerTDFN
Supplier Device Package:PG-TISON-8
