SQUN702E-T1_GE3

SQUN702E-T1_GE3

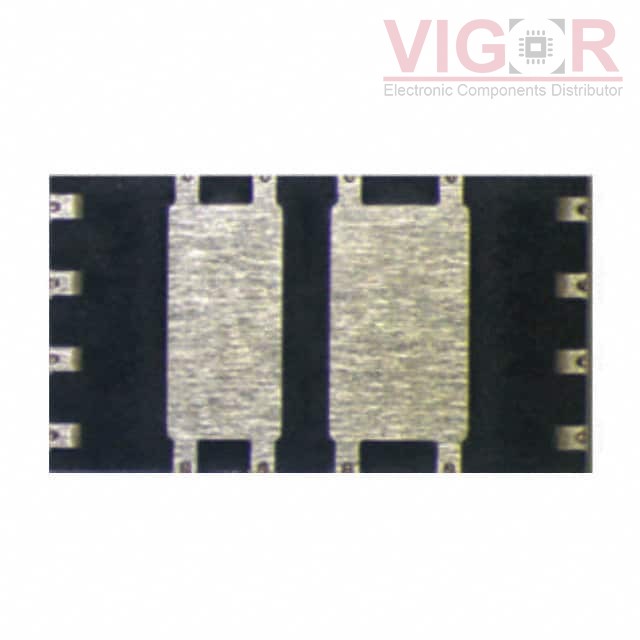

Image is for reference,
please contact us to get the real picture

Part No :

SQUN702E-T1_GE3

Manufacturer
Vishay / Siliconix
Description
MOSFET N&P-CH COMMON DRAIN
Catalog
Transistors - FETs, MOSFETs - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
SQUN702E-T1_GE3 PDF
Availability
150 pieces
Unit Price
$3.15000

Current price of SQUN702E-T1_GE3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SQUN702E-T1_GE3 Specifications
Type Description
Series:Automotive, AEC-Q101, TrenchFET®
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:N and P-Channel, Common Drain
FET Feature:Standard
Drain to Source Voltage (Vdss):40V, 200V
Current - Continuous Drain (Id) @ 25°C:30A (Tc), 20A (Tc)
Rds On (Max) @ Id, Vgs:9.2mOhm @ 9.8A, 10V, 60mOhm @ 5A, 10V, 30mOhm @ 6A, 10V
Vgs(th) (Max) @ Id:2.5V @ 250µA, 3.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:23nC, 14nC, 30.2nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:1474pF, 1450pF, 1302pF @ 20V, 100V
Power - Max:48W (Tc), 60W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount, Wettable Flank
Package / Case:Die
Supplier Device Package:Die
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
