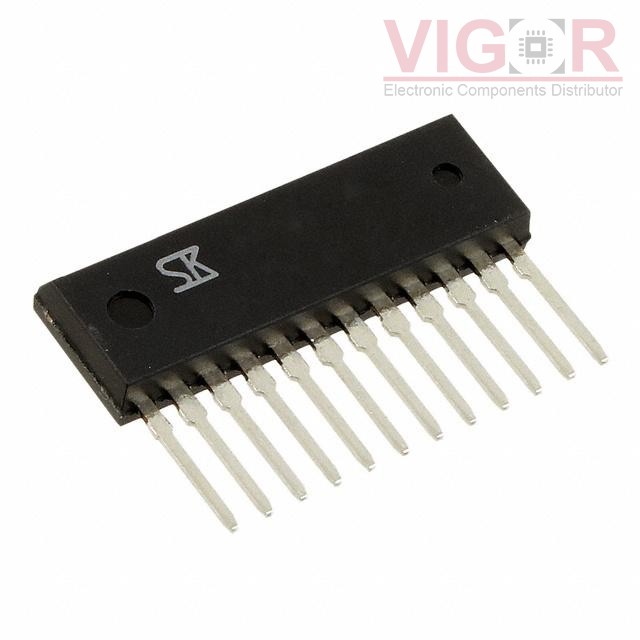

SMA5118

Image is for reference,
please contact us to get the real picture

Part No :: SMA5118

Manufacturer: Sanken Electric Co., Ltd.

Description: MOSFET 6N-CH 500V 5A 12-SIP

Catalog: Transistors - FETs, MOSFETs - Arrays

Shipped from: HK warehouse

Expected Shipping Date: Jul 06 - Jul 10 2025

DataSheet: SMA5118 PDF

Availability: 55 pieces

Unit Price: ~~$6.04000~~

Current price of SMA5118 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SMA5118 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
FET Type:	6 N-Channel (3-Phase Bridge)
FET Feature:	Standard
Drain to Source Voltage (Vdss):	500V
Current - Continuous Drain (Id) @ 25°C:	5A
Rds On (Max) @ Id, Vgs:	1.4Ohm @ 2.5A, 10V
Vgs(th) (Max) @ Id:	4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	-
Input Capacitance (Ciss) (Max) @ Vds:	770pF @ 10V
Power - Max:	4W
Operating Temperature:	150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	12-SIP
Supplier Device Package:	12-SIP

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

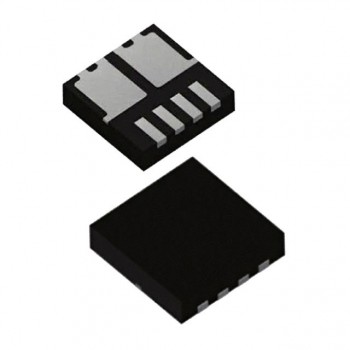

SISF00DN-T1-GE3

MOSFET DUAL N-CH 30V POWERPAK 12

HOT

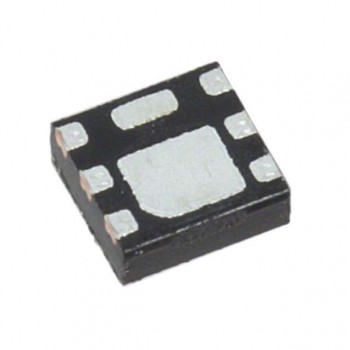

SSM6N61NU,LF
