DMG8601UFG-7

DMG8601UFG-7

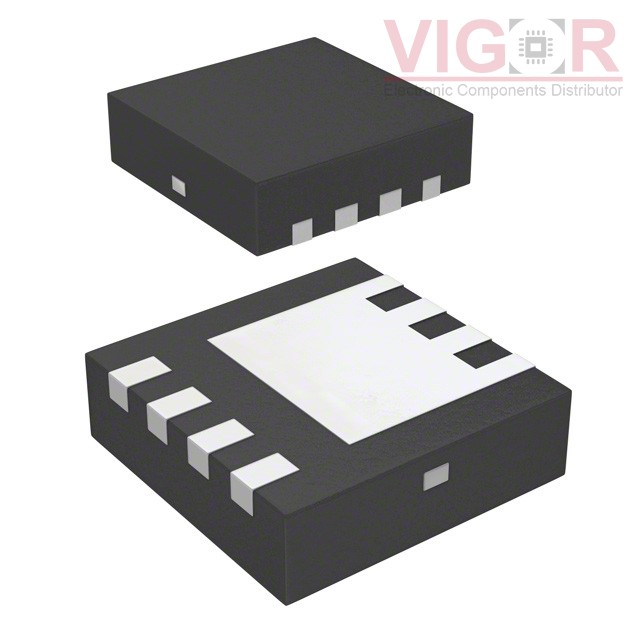

Image is for reference,
please contact us to get the real picture

Part No :

DMG8601UFG-7

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
MOSFET 2N-CH 20V 6.1A DFN
Catalog
Transistors - FETs, MOSFETs - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
DMG8601UFG-7 PDF
Availability
5000 pieces
Unit Price
$0.18000

Current price of DMG8601UFG-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DMG8601UFG-7 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:2 N-Channel (Dual) Common Drain
FET Feature:Logic Level Gate
Drain to Source Voltage (Vdss):20V
Current - Continuous Drain (Id) @ 25°C:6.1A
Rds On (Max) @ Id, Vgs:23mOhm @ 6.5A, 4.5V
Vgs(th) (Max) @ Id:1.05V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:8.8nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:143pF @ 10V
Power - Max:920mW
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:8-PowerUDFN
Supplier Device Package:U-DFN3030-8
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT IPI80N04S3-03

IPI80N04S3-03

N-CHANNEL AUTOMOTIVE MOSFET
HOT FDC3601N

FDC3601N

MOSFET 2N-CH 100V 1A SSOT-6

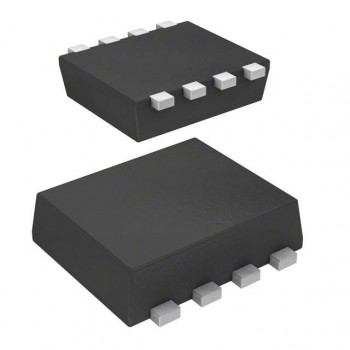

HOT ECH8601M-TL-H
