IRF7306TRPBF

IRF7306TRPBF

Image is for reference,
please contact us to get the real picture

Part No :

IRF7306TRPBF

Manufacturer
IR (Infineon Technologies)
Description
MOSFET 2P-CH 30V 3.6A 8-SOIC
Catalog
Transistors - FETs, MOSFETs - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Jul 03 - Jul 07 2025
DataSheet
IRF7306TRPBF PDF
Availability
22455 pieces
Unit Price
$0.93000

Current price of IRF7306TRPBF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IRF7306TRPBF Specifications
Type Description
Series:HEXFET®
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:2 P-Channel (Dual)
FET Feature:Logic Level Gate
Drain to Source Voltage (Vdss):30V
Current - Continuous Drain (Id) @ 25°C:3.6A
Rds On (Max) @ Id, Vgs:100mOhm @ 1.8A, 10V
Vgs(th) (Max) @ Id:1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:25nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:440pF @ 25V
Power - Max:2W
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:8-SO
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT NVMFD5C446NWFT1G

NVMFD5C446NWFT1G

40V 2.9 MOHM T8 S08FL DUA
HOT UPA2754GR-E2-A

UPA2754GR-E2-A

POWER, 11A, 30V, N-CH MOSFET

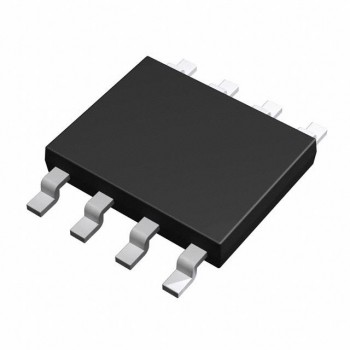

HOT SP8K32FRATB
