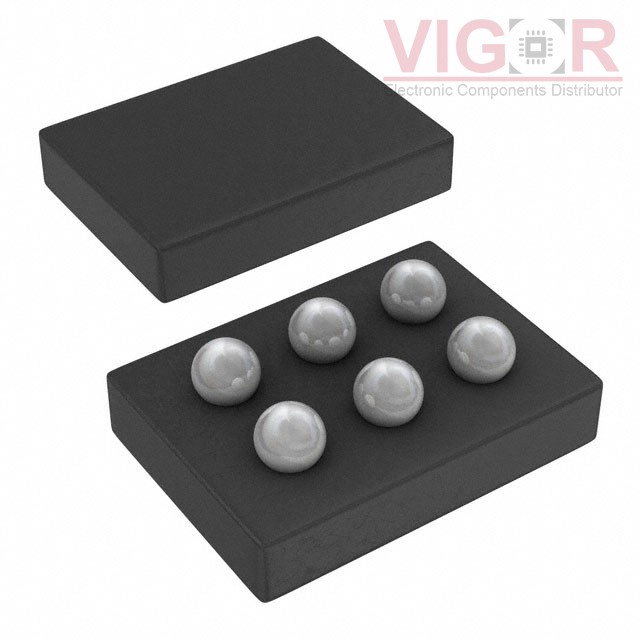

CSD75205W1015

CSD75205W1015

Image is for reference,
please contact us to get the real picture

Part No :

CSD75205W1015

Manufacturer
Texas Instruments
Description
MOSFET 2P-CH 20V 1.2A 6DSBGA
Catalog
Transistors - FETs, MOSFETs - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Jul 13 - Jul 17 2025
DataSheet
CSD75205W1015 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of CSD75205W1015 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CSD75205W1015 Specifications
Type Description
Series:NexFET™
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
FET Type:2 P-Channel (Dual)
FET Feature:Logic Level Gate
Drain to Source Voltage (Vdss):20V
Current - Continuous Drain (Id) @ 25°C:1.2A
Rds On (Max) @ Id, Vgs:120mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id:850mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs:2.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds:265pF @ 10V
Power - Max:750mW
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:6-UFBGA, DSBGA
Supplier Device Package:6-DSBGA (1x1.5)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

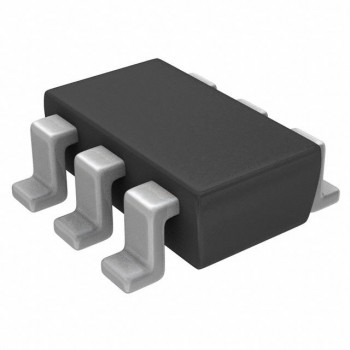

HOT FDC6036P

FDC6036P

MOSFET 2P-CH 20V 5A 6SSOT
HOT IRF7752TR

IRF7752TR

MOSFET 2N-CH 30V 4.6A 8-TSSOP

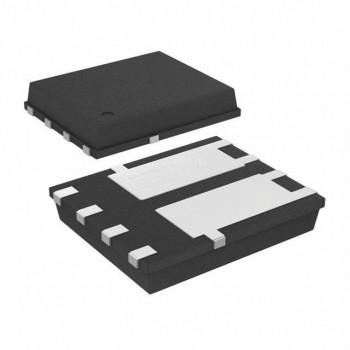

HOT SI7945DP-T1-E3
