AO6801A

AO6801A

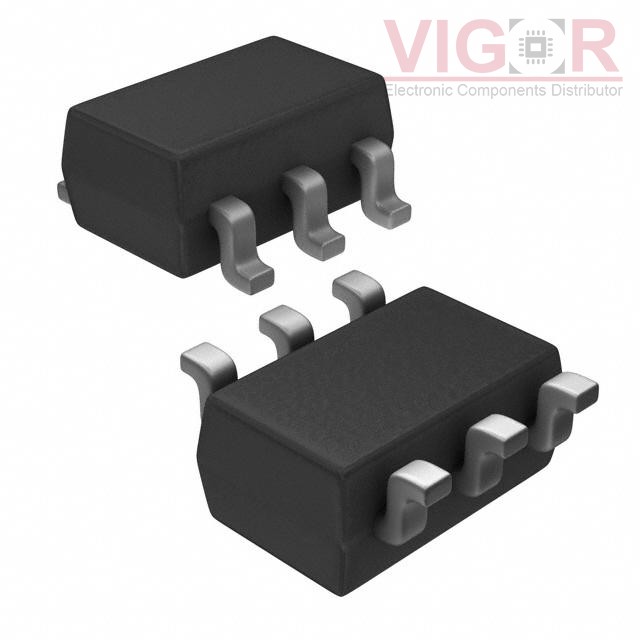

Image is for reference,
please contact us to get the real picture

Part No :

AO6801A

Manufacturer
Alpha and Omega Semiconductor, Inc.
Description
MOSFET 2P-CH 30V 2.3A 6TSOP
Catalog
Transistors - FETs, MOSFETs - Arrays
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
AO6801A PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of AO6801A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AO6801A Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Obsolete
FET Type:2 P-Channel (Dual)
FET Feature:Logic Level Gate
Drain to Source Voltage (Vdss):30V
Current - Continuous Drain (Id) @ 25°C:2.3A
Rds On (Max) @ Id, Vgs:115mOhm @ 2.3A, 10V
Vgs(th) (Max) @ Id:1.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:7nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds:315pF @ 15V
Power - Max:1.15W
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:SC-74, SOT-457
Supplier Device Package:6-TSOP
