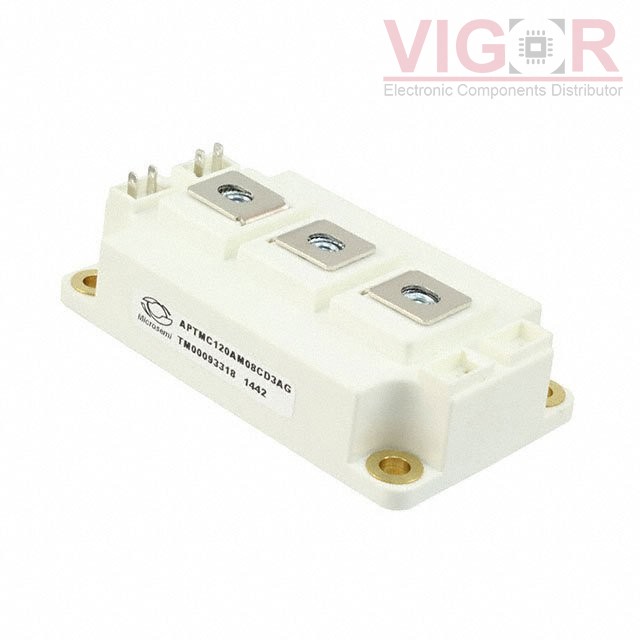

APTMC120AM08CD3AG

Image is for reference,
please contact us to get the real picture

Part No :: APTMC120AM08CD3AG

Manufacturer: Roving Networks / Microchip Technology

Description: MOSFET 2N-CH 1200V 250A D3

Catalog: Transistors - FETs, MOSFETs - Arrays

Shipped from: HK warehouse

Expected Shipping Date: Jul 10 - Jul 14 2025

DataSheet: APTMC120AM08CD3AG PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of APTMC120AM08CD3AG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

APTMC120AM08CD3AG Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
FET Type:	2 N-Channel (Half Bridge)
FET Feature:	Silicon Carbide (SiC)
Drain to Source Voltage (Vdss):	1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C:	250A (Tc)
Rds On (Max) @ Id, Vgs:	10mOhm @ 200A, 20V
Vgs(th) (Max) @ Id:	2.2V @ 10mA (Typ)
Gate Charge (Qg) (Max) @ Vgs:	490nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds:	9500pF @ 1000V
Power - Max:	1100W
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	D-3 Module
Supplier Device Package:	D3

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

IRF9953TR

MOSFET 2P-CH 30V 2.3A 8-SOIC

HOT

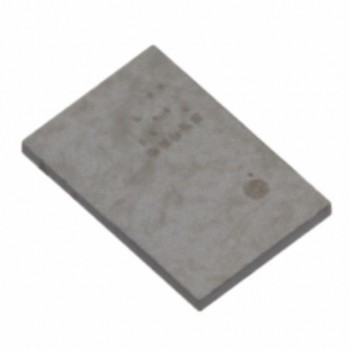

UPA2375T1P-E1-A
