Type | Description |
---|---|
Series: | - |
Package: | Tape & Reel (TR) |
Part Status: | Active |
FET Type: | N-Channel |
Technology: | MOSFET (Metal Oxide) |
Drain to Source Voltage (Vdss): | 40 V |
Current - Continuous Drain (Id) @ 25°C: | 14.4A (Ta) |
Drive Voltage (Max Rds On, Min Rds On): | 3.3V, 10V |
Rds On (Max) @ Id, Vgs: | 7.5mOhm @ 10A, 10V |
Vgs(th) (Max) @ Id: | 3V @ 250µA |
Gate Charge (Qg) (Max) @ Vgs: | 74 nC @ 10 V |
Vgs (Max): | ±20V |
Input Capacitance (Ciss) (Max) @ Vds: | 3537 pF @ 20 V |
FET Feature: | - |
Power Dissipation (Max): | 1W (Ta) |
Operating Temperature: | -55°C ~ 150°C (TJ) |
Mounting Type: | Surface Mount |

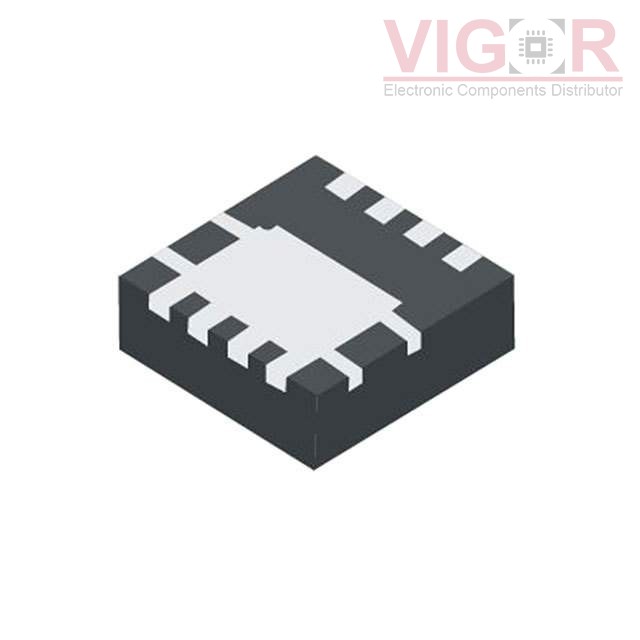

Supplier Device Package: | PowerDI3333-8 |
Package / Case: | 8-PowerVDFN |
MOSFET N-CH 40V 14.4A PWRDI3333
