AON6156

AON6156

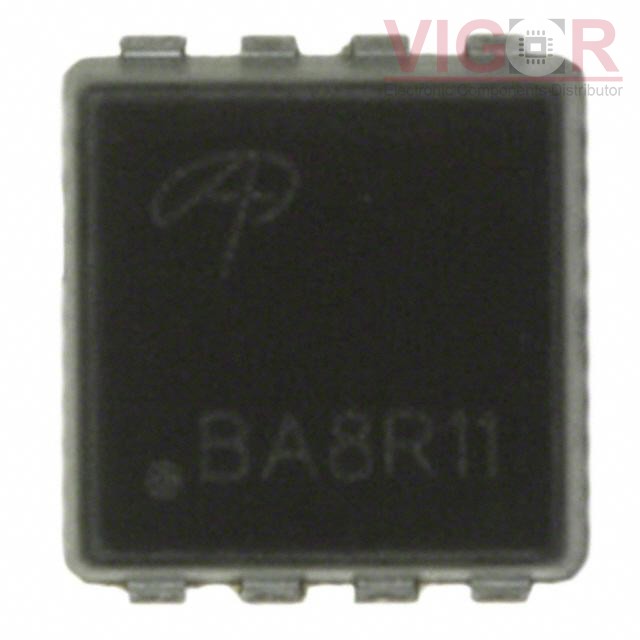

Image is for reference,
please contact us to get the real picture

Part No :

AON6156

Manufacturer
Alpha and Omega Semiconductor, Inc.
Description
MOSFET N-CHANNEL 45V 100A 8DFN
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
AON6156 PDF
Availability
0 pieces
Unit Price
$0.78300

Current price of AON6156 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AON6156 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):45 V
Current - Continuous Drain (Id) @ 25°C:100A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:2.6mOhm @ 20A, 10V
Vgs(th) (Max) @ Id:2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:70 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:3975 pF @ 22.5 V
FET Feature:-
Power Dissipation (Max):78W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:8-DFN-EP (5x6)
Package / Case:8-PowerSMD, Flat Leads
