DMN2005LP4K-7

DMN2005LP4K-7

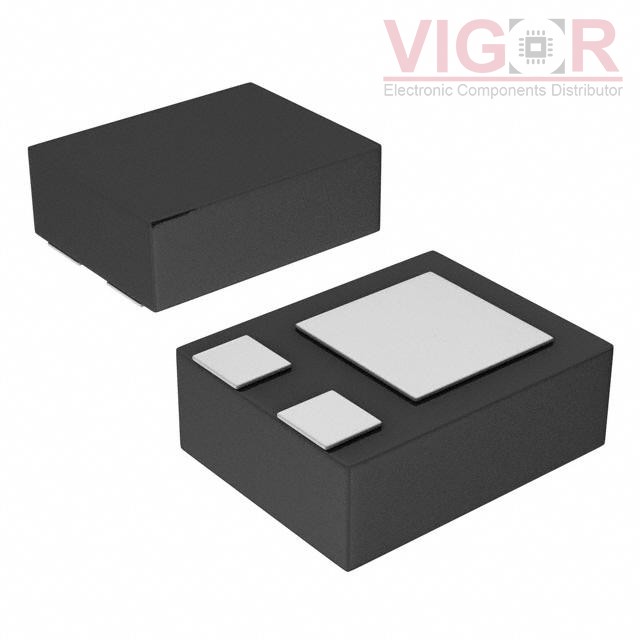

Image is for reference,
please contact us to get the real picture

Part No :

DMN2005LP4K-7

Manufacturer
Zetex Semiconductors (Diodes Inc.)
Description
MOSFET N-CH 20V 200MA 3DFN
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
DMN2005LP4K-7 PDF
Availability
2147483647 pieces
Unit Price
$0.49000

Current price of DMN2005LP4K-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DMN2005LP4K-7 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):20 V
Current - Continuous Drain (Id) @ 25°C:200mA (Ta)
Drive Voltage (Max Rds On, Min Rds On):1.5V, 4V
Rds On (Max) @ Id, Vgs:1.5Ohm @ 10mA, 4V
Vgs(th) (Max) @ Id:900mV @ 100µA
Gate Charge (Qg) (Max) @ Vgs:-
Vgs (Max):±10V
Input Capacitance (Ciss) (Max) @ Vds:41 pF @ 3 V
FET Feature:-
Power Dissipation (Max):400mW (Ta)
Operating Temperature:-65°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:X2-DFN1006-3
Package / Case:3-XFDFN
